Leading Silicon Wafer Manufacturer: Cutting-Edge Technology & Quality

Introduction: Welcome to YICHOU, a leading parts manufacturer specializing in high-quality Silicon Wafers. Our innovative products are designed to meet the demands of various industries worldwide. In this comprehensive guide, we'll walk you through the key aspects of our Silicon Wafers, highlighting their functions, uses, materials, types, application scope, packaging, qualification certificates, and addressing common Google FAQs.

What are silicon wafer used for?

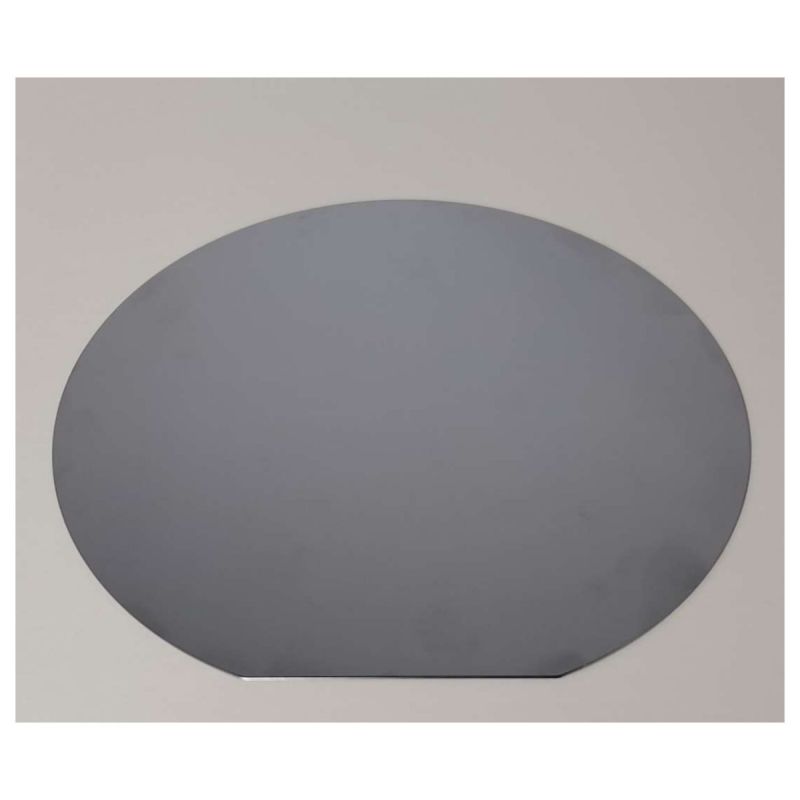

Our Silicon Wafers are precision-engineered components used as substrates for semiconductor device fabrication. These wafers serve as the foundation for integrated circuits, microprocessors, and various electronic components. With exceptional thermal conductivity and electrical properties, our Silicon Wafers ensure optimal performance and reliability in electronic devices, making them essential for cutting-edge technology.

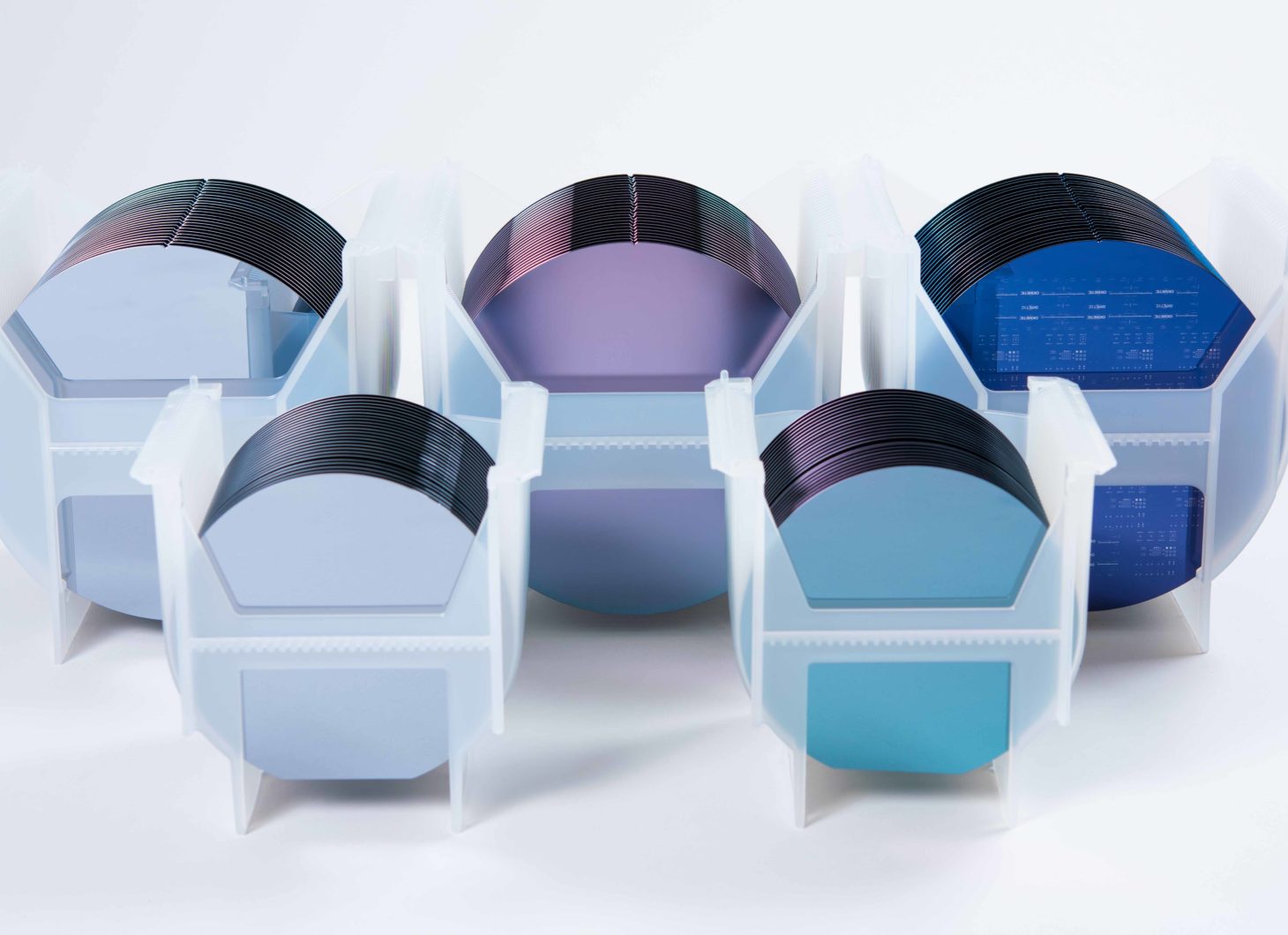

Materials and Types: YICHOU's Silicon Wafers are crafted from high-purity crystalline silicon, ensuring superior quality and consistent performance. We offer a diverse range of wafer types, including:

Monocrystalline Silicon Wafers
Polycrystalline Silicon Wafers
Epitaxial Silicon Wafers

Application Scope: Our Silicon Wafers find applications across a wide spectrum of industries, including:

Semiconductor manufacturing
Photovoltaic (solar cell) production
MEMS (Micro-Electro-Mechanical Systems) fabrication
Optoelectronics
Nanotechnology research

Packaging and Protection: To guarantee the safe delivery of our delicate Silicon Wafers, we utilize advanced packaging techniques. Each wafer is meticulously encased in anti-static material and secured within a durable container, ensuring they reach you in pristine condition, ready for use in your manufacturing processes.

Qualification Certificates: YICHOU is committed to providing products of the highest standard. Our Silicon Wafers are accompanied by industry-recognized qualification certificates, attesting to their quality and compliance with stringent manufacturing standards. We understand the importance of traceability and reliability in your operations.

How are silicon wafers made？

Silicon wafers are a crucial component in the manufacturing of semiconductor devices such as integrated circuits (ICs) and solar cells. The process of making silicon wafers involves several steps, including:

Silicon Ingot Growth: The process begins with the production of a silicon ingot. High-purity polycrystalline silicon is melted in a quartz crucible and then a single silicon crystal seed is introduced into the melt. The seed is slowly pulled upward and rotated, allowing a single crystal of silicon to grow. This is called the Czochralski process or the float-zone process, depending on the specific method used.
Ingot Slicing: The resulting silicon ingot is then sliced into thin, round wafers using a precision saw. These wafers are typically around 200-300 micrometers thick, depending on the intended application.
Lapping and Polishing: The wafers undergo lapping and polishing processes to achieve a smooth and flat surface. This is essential for ensuring uniformity and high-quality semiconductor devices.
Dopant Introduction: Depending on the specific application, dopant materials (such as boron or phosphorous) may be introduced into the silicon wafers to create the desired electrical properties. This is typically done through processes like ion implantation or diffusion.
Thermal Annealing: The wafers are then subjected to thermal annealing, which involves heating them at controlled temperatures to activate and distribute the dopant atoms evenly within the silicon lattice.
Oxidation: To create an insulating layer on the silicon wafers, thermal oxidation is often used. This involves exposing the wafers to oxygen or steam at high temperatures, resulting in the growth of a thin silicon dioxide (SiO2) layer on the wafer's surface.
Photolithography: In semiconductor manufacturing, photolithography is used to define patterns on the wafers. A photosensitive material called a photoresist is applied to the wafer's surface. A mask or reticle is used to project a pattern onto the photoresist, which is then chemically developed to transfer the pattern onto the silicon.
Etching: Etching processes are used to remove specific areas of silicon or oxide layers on the wafer to create the desired circuit patterns. Chemical etching or plasma etching may be employed for this purpose.
Deposition: Thin films of various materials, such as metals, insulators, and semiconductors, are deposited onto the wafer's surface through techniques like chemical vapor deposition (CVD) or physical vapor deposition (PVD). These thin films are used to build up the device's layers.
Quality Control and Testing: Throughout the manufacturing process, quality control measures are implemented to ensure the wafers meet the required specifications. Testing and inspection of individual wafers are also conducted to identify defects and ensure consistent quality.
Dicing: After the various semiconductor devices are created on the wafer, the wafer is diced into individual chips or dies, which can then be packaged for use in electronic devices.

The entire process is highly controlled and requires strict adherence to cleanliness, purity, and precision to produce high-quality silicon wafers suitable for semiconductor manufacturing. The specific techniques and equipment used may vary depending on the intended application and the advancements in semiconductor technology.

Common Google FAQs:

What is a silicon wafer? These crystals can be 300mm in diameter and longer than one meter，Silicon Wafers serve as the base material for manufacturing electronic components like microchips, sensors, and solar cells. They are crucial to modern technology.
What types of Silicon Wafers are available? YICHOU offers monocrystalline, polycrystalline, and epitaxial Silicon Wafers, each tailored to specific applications in semiconductor and electronics industries.
How are Silicon Wafers packaged for shipping? We prioritize the protection of our Silicon Wafers during shipping. Each wafer is delicately packaged in anti-static material and a sturdy container to prevent damage.
Do your Silicon Wafers come with quality certifications? Absolutely! Our Silicon Wafers are accompanied by industry-recognized qualification certificates, ensuring their quality, authenticity, and compliance with rigorous standards.
What industries benefit from your Silicon Wafers? YICHOU Silicon Wafers cater to diverse industries, including semiconductor manufacturing, solar energy, nanotechnology, and optoelectronics, enabling technological advancement worldwide.
