The powerful heart of an engine lies within its piston. This small but mighty component is the unsung hero that converts fuel into motion, propelling vehicles and machinery forward. Have you ever wondered what goes on inside this cylindrical powerhouse? In this article, we will dissect the anatomy of a piston and unveil its inner workings. The piston is a precise mechanical masterpiece, consisting of rings, skirts, and a crown. It moves up and down within the engine cylinder, pushing fuel-air mixture into a combustion chamber and expelling exhaust gases. As the spark ignites the fuel, immense pressure is generated, driving the piston downward with incredible force. This raw energy is then transferred to the crankshaft, ultimately propelling the vehicle or machine. Understanding the intricacies of a piston can provide insights into engine performance, efficiency, and even diagnosing potential issues. Whether you are a car enthusiast, a mechanic, or simply curious about the mechanics behind engines, join us on this journey as we unravel the secrets behind the piston, the unsung hero of the engine.

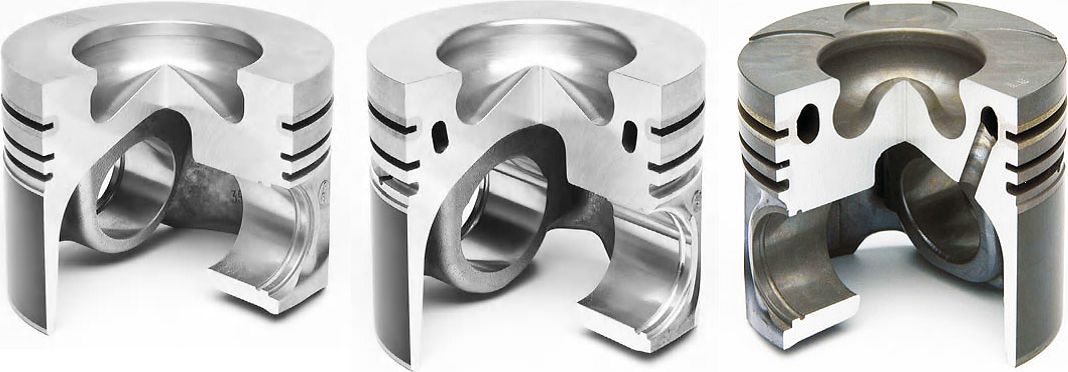

Title: The Components of a Piston: Crown, Skirt, and Wrist Pin

In the world of internal combustion engines, pistons are the unsung heroes. These cylindrical pieces of precision engineering play a crucial role in converting fuel into power, driving our vehicles, and powering machinery. Understanding the components of a piston is the first step in appreciating the complex dance that occurs under your hood. Let's delve into the intricate world of pistons and explore their three primary components: the crown, the skirt, and the wrist pin.

The crown is the top portion of the piston, also known as the piston head. It faces the combustion chamber, where the magic of power generation happens. Made from high-strength materials like aluminum alloys, it must withstand extreme heat and pressure. The crown's shape and design are critical, as they impact compression ratios and combustion efficiency. Engineers continually refine crown design to optimize engine performance, improving fuel efficiency and power output.

Beneath the crown lies the skirt - the longest part of the piston. The skirt's role is to guide the piston in its up-and-down motion within the cylinder bore. It needs to maintain a precise fit to prevent excessive friction and ensure efficient energy transfer. Pistons can have various skirt profiles, such as full, slipper, or barrel, each with its advantages depending on the engine's requirements. Modern manufacturing techniques have allowed for reduced skirt friction while maintaining durability, contributing to overall engine efficiency.

Connecting these two vital components is the wrist pin, often called the piston pin. This small but crucial piece connects the piston to the connecting rod, allowing the piston to pivot as it moves within the cylinder. Wrist pins need to strike a balance between strength and weight to minimize reciprocating mass, which can affect engine smoothness and efficiency. Materials like steel or high-strength alloys are used to ensure the wrist pin can handle the stresses of engine operation.

In summary, the crown, skirt, and wrist pin form the backbone of a piston's structure. Their intricate designs and materials impact not only the piston's longevity but also the engine's performance. Engineers constantly seek ways to improve these components to enhance combustion efficiency and optimize power output, making pistons a cornerstone of internal combustion engine innovation.

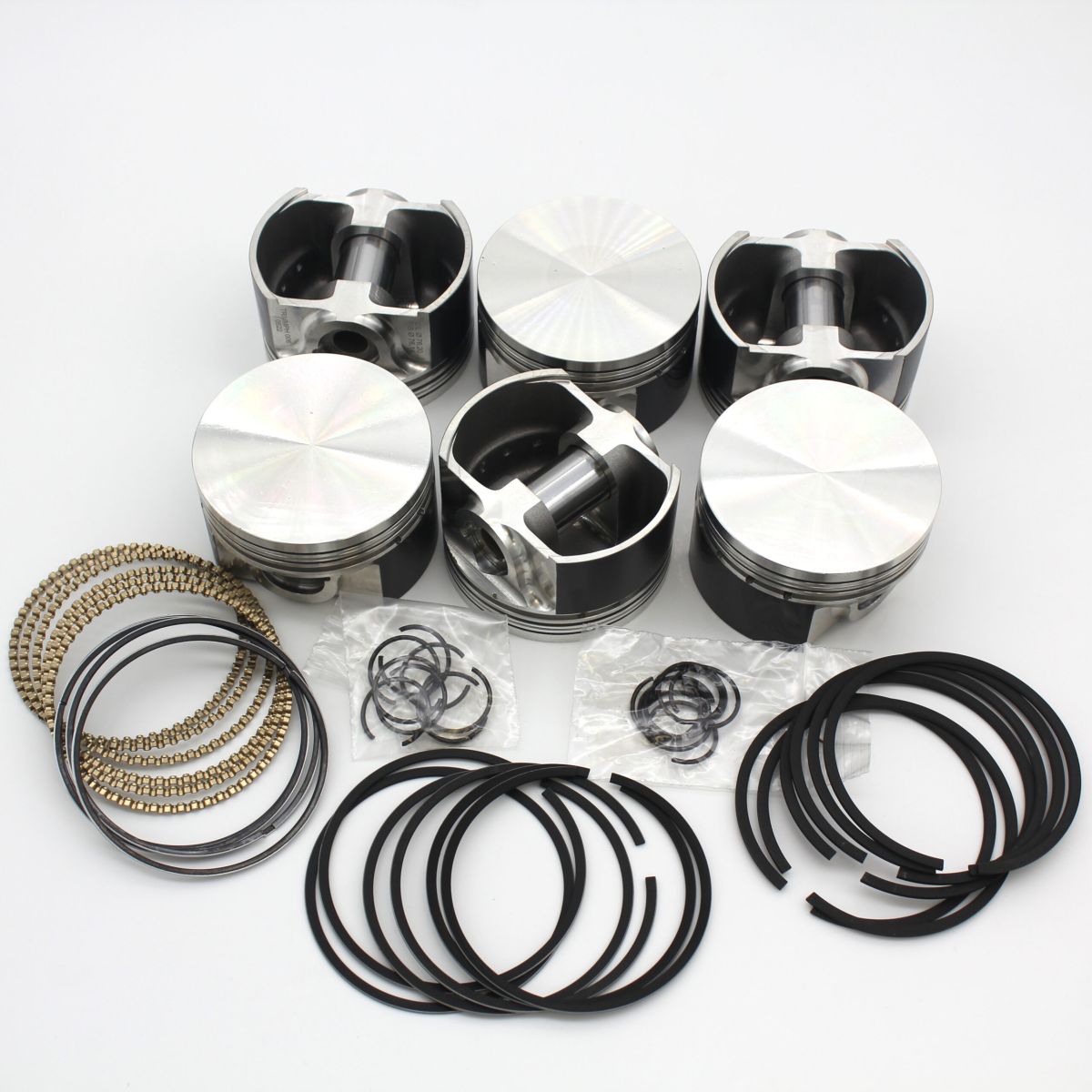

Title: Piston Rings: Their Function and Types

While the piston's crown, skirt, and wrist pin grab most of the attention, there's another unsung hero working tirelessly behind the scenes – the piston rings. These seemingly simple bands of metal play a vital role in ensuring your engine's efficiency and longevity. Let's explore their functions and the different types of piston rings.

Function of Piston Rings: Piston rings serve several critical functions within an engine. Firstly, they create a seal between the piston and the cylinder wall, preventing the combustion gases from escaping into the crankcase and ensuring that power is harnessed to drive the vehicle. Secondly, they help regulate the distribution of oil on the cylinder wall, providing lubrication and reducing friction between the moving parts. Lastly, piston rings aid in transferring heat away from the piston to the cylinder wall, helping to maintain the desired operating temperature.

Types of Piston Rings: There are three primary types of piston rings, each with its specific function. The top ring, also known as the compression ring, is responsible for sealing the combustion chamber. Its precise fit and ability to withstand extreme temperatures and pressures are crucial for engine efficiency. Just below it, the second ring, often called the second compression ring, aids in maintaining the seal and regulating oil. The third ring, the oil control ring, has a unique design to scrape excess oil from the cylinder walls while maintaining the necessary lubrication.

In addition to these fundamental ring types, some engines may have specialized rings, such as oil scraper rings or even keystone rings, designed for specific performance or efficiency goals. The choice of piston rings is influenced by factors like engine type, fuel efficiency requirements, and power output goals.

Engineers continually refine piston ring materials, coatings, and designs to strike a balance between sealing ability, reduced friction, and longevity. These advancements are instrumental in improving engine performance and extending the lifespan of your vehicle's powerplant.

Title: Piston Materials and Manufacturing Processes

Pistons may seem like simple components, but their design and construction are the result of decades of engineering innovation. To achieve optimal engine performance, it's essential to choose the right materials and manufacturing processes for pistons. In this section, we'll explore the fascinating world of piston materials and how they are transformed into the heart of your engine.

Materials for Pistons: Piston materials must possess several key attributes. They need to be lightweight to reduce reciprocating mass, which, in turn, minimizes energy loss and enhances engine efficiency. They must also have high strength to withstand the extreme temperatures and pressures of combustion. Aluminum alloys are commonly used for most pistons due to their excellent balance of these properties. However, in high-performance and diesel engines, materials like forged steel or hypereutectic aluminum-silicon alloys are preferred.

Manufacturing Processes: Once the material is selected, it undergoes a series of manufacturing processes to become a piston. The most common method is casting, where molten metal is poured into a mold and cooled to form the piston's initial shape. Forged pistons, on the other hand, are created by shaping a solid piece of metal using intense heat and pressure. Forgings are favored in high-performance applications because they offer superior strength and durability.

After the initial shape is formed, precision machining processes come into play. This includes milling, boring, and honing to achieve the final piston shape with the necessary tolerances. Advanced techniques like CNC machining have revolutionized piston manufacturing, ensuring consistent quality and performance.

In recent years, advancements in materials science and 3D printing technology have started to influence piston manufacturing. Some companies are experimenting with additive manufacturing processes to create lightweight and intricately designed pistons. These innovations promise to further enhance engine efficiency and power output.

In conclusion, the choice of piston materials and the precision of manufacturing processes are crucial factors in determining engine performance and durability. As technology continues to evolve, we can expect even more exciting developments in piston materials and manufacturing techniques, pushing the boundaries of what our engines can achieve.

Title: How Pistons Work in a Combustion Engine

Pistons are at the heart of the combustion engine, quite literally. To appreciate their significance, it's essential to understand how they work in conjunction with other engine components to transform fuel into motion. In this section, we'll dive into the mechanics of how pistons operate within the intricate dance of a combustion engine.

The Four-Stroke Cycle: Most automotive engines operate on the four-stroke cycle: intake, compression, power, and exhaust. The piston's journey through these four strokes is what generates power.

• Intake Stroke: As the piston moves down the cylinder bore, the intake valve opens, allowing a mixture of air and fuel to enter the combustion chamber.
• Compression Stroke: The intake valve closes, and the piston starts moving back up the cylinder, compressing the air-fuel mixture. This compression increases its temperature and pressure, making it more combustible.
• Power Stroke: At the top of the compression stroke, a spark plug ignites the compressed air-fuel mixture. The resulting explosion forces the piston down the cylinder, turning the crankshaft and generating power.
• Exhaust Stroke: As the piston reaches the bottom of its travel, the exhaust valve opens, and the piston rises again, pushing the burned gases out of the cylinder.

Reciprocating vs. Rotational Motion: The up-and-down motion of the piston is converted into the rotational motion of the crankshaft through the connecting rod. This rotational motion is what ultimately drives your vehicle's wheels or powers other machinery.

Efficiency and Engine Performance: The efficiency of this process is influenced by various factors, including the piston's design, the quality of the air-fuel mixture, and the timing of the engine's valves. Engineers continuously strive to optimize these elements to improve engine efficiency, reduce emissions, and enhance power output.

Understanding how pistons work in a combustion engine provides insight into the complex interplay of forces and energies involved. It also underscores the importance of well-designed pistons and their role in the overall performance of the engine.

Title: The Importance of Piston Design for Engine Performance

Piston design is a critical factor that significantly influences engine performance. The intricate details of a piston's shape, size, and materials can make the difference between a sluggish engine and a high-performance powerhouse. In this section, we'll delve into the importance of piston design and its impact on engine performance.

Compression Ratio: The shape and size of the piston crown play a crucial role in determining the engine's compression ratio. A higher compression ratio results in more efficient combustion, yielding increased power and better fuel economy. Engineers carefully calculate and optimize piston crown designs to achieve the desired compression ratio for a specific engine.

Weight and Reciprocating Mass: Reducing the weight of the piston is a constant pursuit in engine design. A lighter piston means less reciprocating mass, resulting in reduced energy loss and smoother engine operation. Pistons made from lightweight materials like aluminum alloys or high-strength forged metals are preferred for high-performance applications.

Heat Dissipation: Efficient heat dissipation is essential to prevent the piston from overheating and causing engine damage. Modern piston designs incorporate features like cooling galleries and oil sprayers to manage heat effectively. These innovations contribute to increased engine reliability and longevity.

Friction Reduction: Piston skirts are designed to minimize friction against the cylinder wall. Advanced skirt profiles and coatings, such as polymer-based materials, help reduce friction, improving engine efficiency and reducing wear and tear.

Balancing Act: Piston design is a careful balancing act, as changes in one aspect can impact others. Engineers use sophisticated simulations and testing to find the optimal piston design that maximizes power output, fuel efficiency, and reliability.

In the world of high-performance engines, even the slightest improvement in piston design can result in significant gains in power and efficiency. As technology advances, we can expect even more innovative piston designs that push the boundaries of what combustion engines can achieve.

Title: Common Piston Problems and Troubleshooting Tips

While pistons are essential components in internal combustion engines, they are not immune to issues. Like any mechanical part, pistons can experience problems that affect engine performance and reliability. In this section, we'll explore some common piston-related problems and provide troubleshooting tips.

1. Piston Ring Wear: Over time, piston rings can wear down, leading to decreased compression and increased oil consumption. If you notice blue smoke from the exhaust, poor engine performance, or increased oil consumption, it's a sign of worn piston rings. To address this issue, the engine may require a rebuild or piston ring replacement.

2. Piston Slap: Piston slap is a condition where the piston rocks slightly in the cylinder bore, producing a knocking noise. It can be caused by excessive wear or inadequate piston-to-cylinder clearance. To mitigate piston slap, consult your mechanic for proper diagnosis and potential solutions.

3. Piston Scuffing: Excessive friction between the piston and cylinder wall can lead to scuffing, a form of damage where small bits of material are transferred between the two surfaces. This can result from insufficient lubrication or incorrect piston clearances. Regular oil changes and proper maintenance can help prevent scuffing.

4. Piston Damage from Detonation: Detonation occurs when the air-fuel mixture in the cylinder ignites prematurely due to factors like excessive heat or incorrect ignition timing. Detonation can lead to piston damage, including cracks or holes in the crown. Correcting ignition timing and using higher-octane fuel can help prevent this issue.

5. Carbon Deposits: Carbon deposits can accumulate on the piston crown, leading to hot spots and reduced engine efficiency. Using high-quality fuel and additives designed to clean carbon deposits can help prevent this problem.

6. Overheating: Excessive engine temperatures can cause piston expansion, leading to seizing and potential engine damage. Ensure your engine cooling system is in good condition and that you're not pushing the engine beyond its limits.

7. Knocking Sounds: If you hear knocking sounds from the engine, it could indicate piston-related issues, such as a loose wrist pin or connecting rod bearing. Prompt diagnosis and repair are essential to prevent further damage.

Regular maintenance, including oil changes and periodic inspections, can help detect and prevent many piston-related problems. If you encounter any of these issues, it's crucial to consult a qualified mechanic for a proper diagnosis and repair.

Title: Upgrading Pistons for Increased Power and Efficiency

For those seeking to extract more power and efficiency from their engines, upgrading pistons can be a game-changer. Whether you're a racing enthusiast or simply want to boost your daily driver's performance, aftermarket pistons offer exciting possibilities. In this section, we'll explore the advantages of upgrading pistons and how they can transform your engine.

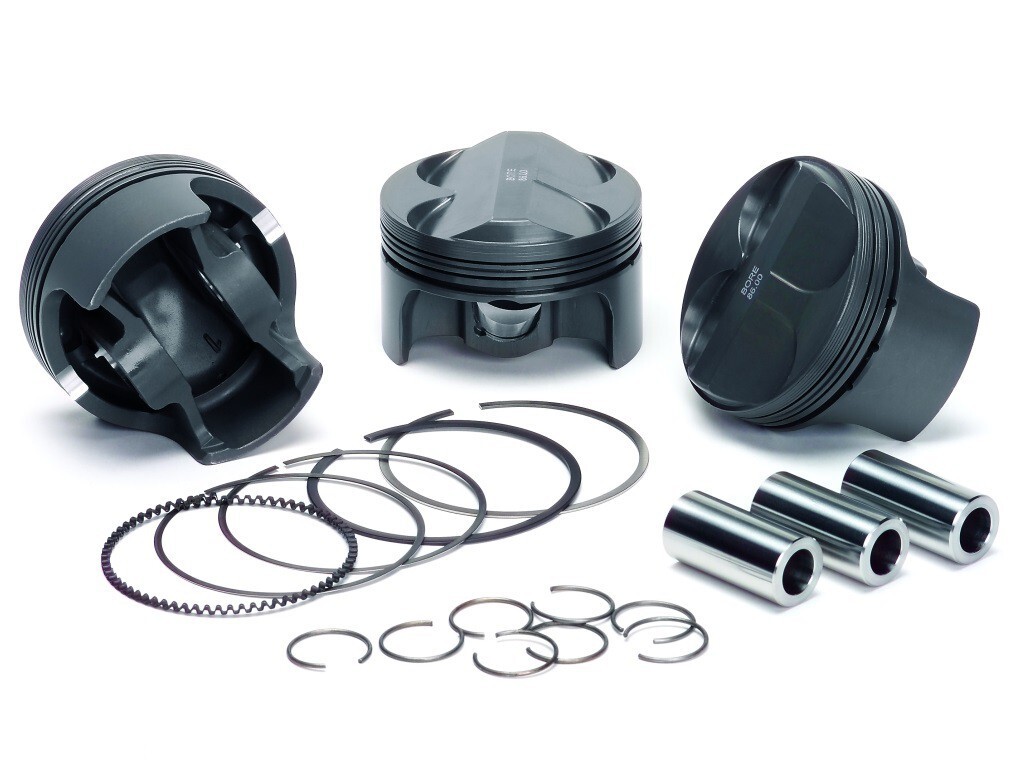

Performance Pistons: Performance pistons are engineered to deliver exceptional power and reliability. They are typically made from high-strength materials like forged aluminum or steel and have features like improved crown designs and lightweight profiles. Upgrading to performance pistons can increase horsepower, torque, and engine responsiveness.

Forged vs. Cast Pistons: Performance pistons often come in two main varieties: forged and cast. Forged pistons are stronger and more durable, making them ideal for high-performance applications where extreme stresses are involved. Cast pistons are suitable for moderate upgrades and daily driving.

Customization: Many aftermarket piston manufacturers offer customization options, allowing you to tailor the piston design to your specific needs. You can choose compression ratios, bore sizes, and other specifications to match your engine's requirements.

Boosted and Turbocharged Engines: Upgrading pistons is especially beneficial for engines equipped with forced induction systems like turbochargers or superchargers. These systems increase air pressure and, in turn, demand stronger pistons to handle the added stress. Performance pistons are designed to withstand these forces and optimize power delivery.

Improved Heat Dissipation: Performance pistons often incorporate advanced heat dissipation features, such as coated crowns or cooling galleries. These enhancements help manage heat more effectively, contributing to engine reliability.

Engine Tuning: When upgrading pistons, it's essential to consider other modifications, such as engine tuning and fuel system upgrades. These changes work in synergy with performance pistons to achieve the desired power and efficiency gains.

While upgrading pistons can be a significant investment, it's a surefire way to unlock the hidden potential of your engine. Whether you're looking for a boost on the track or seeking improved everyday driving, performance pistons can elevate your driving experience to a whole new level.

Title: Maintenance and Care for Pistons

Pistons are vital components of your engine, and like any part of your vehicle, they require proper maintenance and care to ensure longevity and reliable performance. Neglecting piston maintenance can lead to costly repairs and reduced engine efficiency. In this section, we'll outline essential maintenance and care tips for pistons.

Regular Oil Changes: Consistent oil changes are critical to piston health. Engine oil lubricates the piston rings and reduces friction between the piston and cylinder wall. Old or contaminated oil can lead to increased wear and reduced efficiency. Follow your manufacturer's recommendations for oil change intervals and use the recommended oil type.

Air Filter Maintenance: A clean and functioning air filter is essential for the engine's health. A clogged air filter can lead to poor combustion, increasing the risk of carbon buildup on the piston crown and reduced efficiency. Replace the air filter as recommended in your vehicle's maintenance schedule.

Cooling System Inspection: Proper engine cooling is crucial to prevent overheating, which can cause piston damage. Regularly check the cooling system for leaks, ensure the coolant level is correct, and replace the coolant according to the manufacturer's recommendations.

Avoid Over-Revving: Avoid excessive engine RPM, especially when the engine is cold. Over-revving can subject the pistons to higher stress levels, potentially leading to damage. Follow your vehicle's recommended RPM range and warm up the engine before pushing it hard.

Use High-Quality Fuel: Quality fuel can prevent carbon buildup on the piston crown and keep the engine running smoothly. Use the recommended octane rating for your vehicle and consider using fuel additives to clean the fuel system periodically.

Inspect for Oil Leaks: Oil leaks can lead to reduced oil levels, which can be harmful to the pistons. Regularly inspect the engine for oil leaks and address them promptly.

Professional Inspection: Periodically have your engine inspected by a qualified mechanic. They can perform a thorough checkup, including evaluating piston health, and identify any issues that may require attention.

By following these maintenance and care tips, you can help ensure the longevity and reliable performance of your engine's pistons. Proper care not only saves you money on repairs but also contributes to improved fuel efficiency and overall vehicle reliability.

Title: Conclusion: The Vital Role of Pistons in Engine Performance and Reliability

In the grand symphony of the internal combustion engine, pistons play a leading role. These unassuming components, comprising the crown, skirt, and wrist pin, are the workhorses responsible for converting fuel into power, propelling our vehicles, and driving machinery. Throughout this journey, we've explored the intricate world of pistons, from their components and functions to materials, manufacturing, and their impact on engine performance.

Pistons are more than just pieces of metal moving up and down in cylinders; they are the heart of the engine. Their design, materials, and manufacturing processes are the result of relentless engineering innovation aimed at improving power output, efficiency, and reliability.

The piston's crown, skirt, and wrist pin work in harmony to facilitate the four-stroke cycle, allowing engines to generate power from the controlled explosion of fuel and air. This process, while seemingly simple, is the culmination of decades of research and development.

Piston design is a critical factor in engine performance. The compression ratio, weight, heat dissipation, and friction management all hinge on the careful design and engineering of pistons. Changes in piston design can yield significant improvements in power, efficiency, and overall engine performance.

However, pistons are not invincible. They can suffer from wear and tear, scuffing, overheating, and other issues. Regular maintenance and care are essential to ensure pistons operate optimally and extend engine life.

For those seeking more power and efficiency, upgrading pistons can unlock an engine's hidden potential. Performance pistons, available in various materials and designs, can deliver increased power and responsiveness, especially when combined with other performance-enhancing modifications.

In conclusion, pistons are the unsung heroes of the internal combustion engine, performing their vital role tirelessly, often without much recognition. Understanding their components, functions, and the importance of proper care and maintenance can help you appreciate the complexity and ingenuity behind the machines that power our world. Pistons are the beating heart of our engines, and their health and performance are integral to the reliability and efficiency of our vehicles and machinery.



1. FAQ: What are the key materials used in manufacturing engine pistons?

Keywords: Engine piston materials, piston manufacturing, piston material types

Answer: Engine pistons are commonly manufactured using materials like aluminum alloys, forged steel, and hypereutectic aluminum-silicon alloys. Each material type offers a unique balance of strength, weight, and durability, catering to specific engine requirements. Forged steel pistons are preferred for high-stress applications, while aluminum alloys strike a balance between weight and strength. Hypereutectic aluminum-silicon alloys are often used in lightweight, high-performance engines. The choice of material is a critical decision in piston manufacturing, impacting engine performance and reliability.

2. FAQ: Can you explain how pistons work within an internal combustion engine?

Keywords: Piston operation, four-stroke cycle, engine combustion

Answer: Certainly! Pistons play a central role in the operation of an internal combustion engine. They move up and down within the cylinder bore, facilitating the four-stroke cycle: intake, compression, power, and exhaust. During the intake stroke, the piston moves down as the engine sucks in a mixture of air and fuel. In the compression stroke, the piston moves back up, compressing the mixture, making it highly combustible. The power stroke follows, ignited by a spark plug, driving the piston down, which, in turn, powers the engine. Finally, the exhaust stroke sees the piston pushing out the burned gases. This cyclical motion converts fuel into power, propelling your vehicle.

3. FAQ: What is the significance of piston design in engine performance?

Keywords: Piston design, compression ratio, weight reduction, heat dissipation

Answer: Piston design significantly impacts engine performance. It dictates crucial factors such as compression ratio, which influences combustion efficiency and power output. Lightweight pistons reduce reciprocating mass, minimizing energy loss and improving engine efficiency. Innovative heat dissipation features within piston design prevent overheating and ensure engine reliability. In essence, piston design is the key to optimizing power, efficiency, and the overall performance of an engine.

4. FAQ: What are some common problems that can affect engine pistons?

Keywords: Common piston problems, piston wear, overheating, carbon buildup

Answer: Engine pistons can face various issues over time. Common problems include piston ring wear, which can lead to reduced compression and increased oil consumption. Piston slap, characterized by a knocking noise, may occur due to wear or incorrect clearances. Piston scuffing can result from excessive friction, and overheating can cause piston expansion and seizing. Carbon buildup on the piston crown can lead to hot spots and decreased efficiency. Regular maintenance and addressing these issues promptly can help prolong piston and engine life.

5. FAQ: How can upgrading pistons improve engine power and efficiency?

Keywords: Upgrading pistons, performance pistons, forged vs. cast pistons

Answer: Upgrading pistons to performance variants can significantly boost engine power and efficiency. Performance pistons are engineered with materials like forged aluminum or steel and feature advanced designs for enhanced performance. They provide increased strength, reduced weight, and improved heat dissipation. The choice between forged and cast pistons depends on the level of performance desired. When combined with other modifications and engine tuning, upgrading pistons can unlock an engine's full potential, delivering more horsepower, torque, and responsiveness.
