Introduction to Nitinol

Overview: What is Nitinol?

Nitinol, an alloy of nickel and titanium, is known for its unique properties, particularly its ability to "remember" and return to a pre-set shape. This remarkable property makes it invaluable across various industries, from medicine to aerospace. Composed of approximately 55% nickel and 45% titanium, Nitinol stands out due to its shape memory effect and superelasticity, both of which are rooted in its distinct molecular structure.

Unique Properties: Shape Memory Effect and Superelasticity

1. Shape Memory Effect: One of Nitinol's most famous properties is its ability to undergo deformation at one temperature, only to return to its original shape when heated above a certain temperature. This shape memory effect allows Nitinol to be reshaped and then "reset" to its original configuration, making it useful for applications where reversible transformation is essential.

2. Superelasticity: Unlike most metals, Nitinol can stretch significantly and return to its original shape without permanent deformation. This property, known as superelasticity or pseudoelasticity, occurs because Nitinol can undergo a phase transformation under stress. This makes it ideal for uses where flexibility and resilience are required, such as in stents and guidewires for medical procedures.

History and Development of Nitinol

Nitinol was discovered in the early 1960s by William Buehler, a researcher at the Naval Ordnance Laboratory. The alloy's name—Nitinol—is derived from its components (Nickel and Titanium) and the lab where it was discovered (Naval Ordnance Laboratory). Buehler observed that this nickel-titanium alloy had an unusual ability to "remember" shapes after deformation, leading to the discovery of its shape memory effect.

The initial excitement around Nitinol sparked numerous studies into its potential applications, especially in fields like aerospace and medicine. By the 1980s, advances in production and processing had made Nitinol more accessible and reliable, paving the way for its widespread use in stents, dental braces, and eyeglass frames. Today, Nitinol continues to be a focus of research, with ongoing advancements that improve its durability, biocompatibility, and range of applications.





Main Uses of Nitinol

Thanks to its unique properties of shape memory and superelasticity, Nitinol has found applications across various industries. Here are some of the most prominent areas where Nitinol is making an impact.

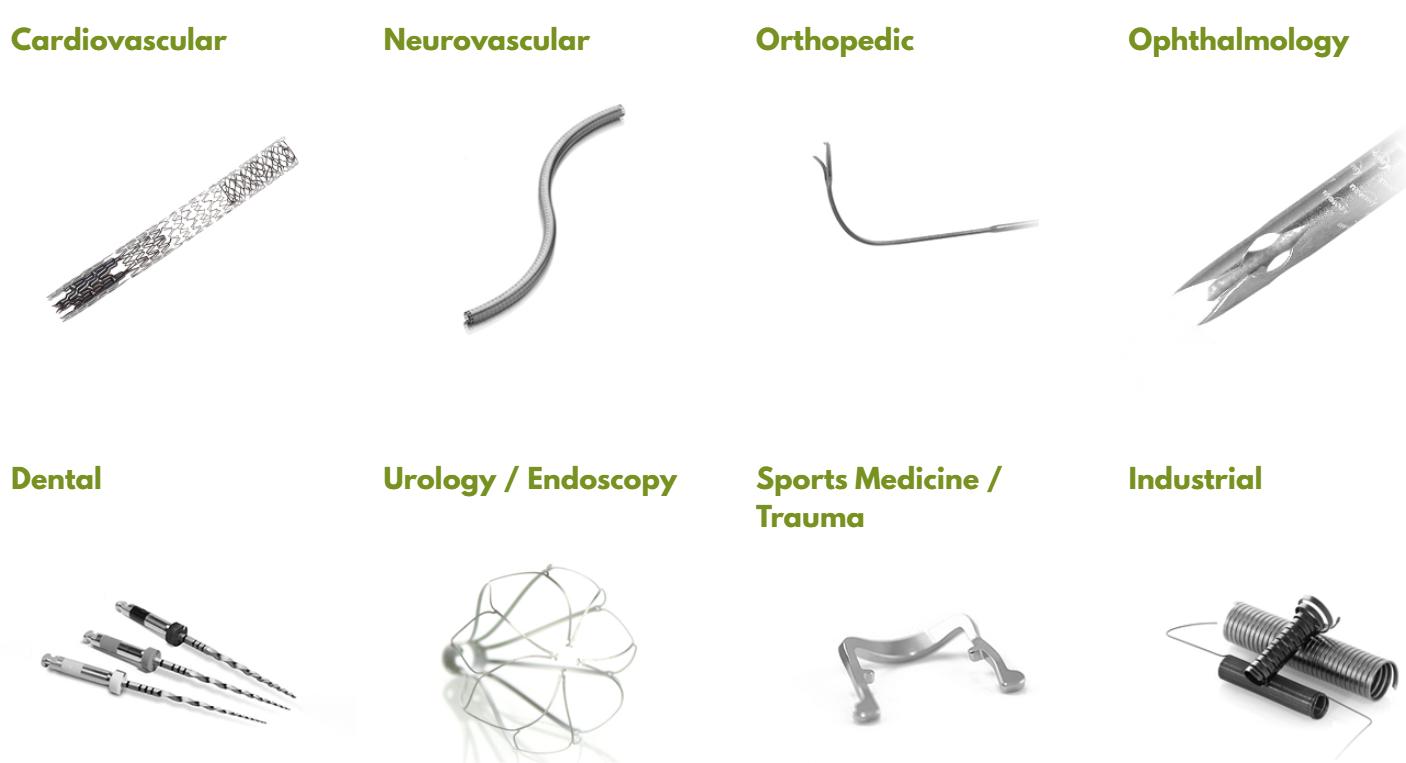

Medical Applications

One of the largest markets for Nitinol is in the medical field. Its biocompatibility, flexibility, and ability to return to a set shape make it ideal for devices that need to adapt within the human body. Some key medical applications include:

• Stents: Nitinol stents are used to keep blood vessels open, especially in cases of coronary artery disease. Due to its shape memory, a Nitinol stent can be compressed for insertion and then expand at body temperature to support the vessel.
• Orthopedic Implants: Nitinol's flexibility and resilience allow it to be used in orthopedic implants, especially for bone fractures and spinal procedures, where it can adapt to movements in the body.
• Guidewires and Catheters: Nitinol guidewires and catheters are widely used in minimally invasive surgeries. Their flexibility and superelasticity make them ideal for navigating complex pathways in the body.

Aerospace and Robotics

Nitinol’s superelastic properties and ability to withstand deformation make it a valuable material in aerospace and robotics. Some uses in these fields include:

• Complex Structures: In aerospace, Nitinol is often used in complex structures and components that require both flexibility and durability, such as actuators and couplings.
• Elastic Components: In robotics, Nitinol can be used for actuators and other components that need to bend and return to their original shape repeatedly. This allows for more lightweight, flexible, and adaptive designs.

Consumer and Industrial Applications

Nitinol's flexibility and resilience have led to applications in a range of consumer and industrial products, including:

• Eyeglass Frames: Nitinol eyeglass frames are popular because they can bend without breaking, making them durable and comfortable for everyday use.
• Antennas and Connectors: Nitinol’s flexibility and ability to retain shape make it useful in antennas and electrical connectors that undergo frequent bending.
• Other Products: From fishing hooks to cell phone antennas, Nitinol’s shape memory and elasticity are valued in products that require durability and adaptability.

Common Questions About Nitinol

Nitinol’s unique properties and niche applications raise some common questions:

• Can Nitinol stop a bullet?
  While Nitinol is strong and flexible, it is not typically used for bulletproof applications. Its strength is more in its flexibility and memory, not in stopping high-velocity projectiles.

• Why aren’t Nitinol engines widely used?
  Although Nitinol has been explored for use in heat engines, the high costs of production and material limitations have prevented it from being widely used in engines.

• What products are made from Nitinol?
  In addition to medical stents and eyeglass frames, Nitinol is used in a wide range of products such as actuators, cell phone antennas, and robotic components.

• Does Nitinol wear out? How long does it last?
  Nitinol is durable, but like all materials, it can wear out over time depending on the environment and level of repeated stress. Proper processing and coatings can extend its lifespan.

• Does Nitinol rust?
  Nitinol is corrosion-resistant, but it can still be affected by certain environments. For medical applications, it is often coated or treated to enhance its corrosion resistance.

• What happens to Nitinol when heated?
  When Nitinol is heated above its transition temperature, it returns to its "remembered" shape. This temperature can vary depending on its alloy composition.

• Where is Nitinol found?
  Nitinol is not a naturally occurring metal; it is an engineered alloy. It is produced in controlled environments by alloying nickel and titanium in precise proportions.

• Is Nitinol environmentally friendly? Is it expensive?
  Nitinol is relatively expensive due to the difficulty of production and precise alloying requirements. Its environmental impact largely depends on its manufacturing process and recycling methods.

• What is the trade name for Nitinol?
  Nitinol is commonly known by its name or variations like "nickel-titanium alloy," but some manufacturers may have specific trade names for their proprietary Nitinol products.







Problems with Nitinol

While Nitinol is celebrated for its unique properties, it does come with certain limitations and challenges. Understanding these issues is crucial for determining its suitability for different applications.

Durability: Issues with Wear, Corrosion, and Fatigue

Nitinol’s durability can be a concern, especially in applications that require long-term reliability. Some common durability challenges include:

• Wear: Although Nitinol is flexible and resilient, it is still susceptible to wear, especially when used in applications with constant friction or repeated motion. Wear resistance can vary depending on the specific alloy composition and treatments applied to the surface.

• Corrosion: While Nitinol is generally corrosion-resistant, it can still corrode over time, particularly in harsh environments or when exposed to bodily fluids for extended periods. Medical-grade Nitinol often undergoes special coatings or treatments to enhance corrosion resistance, but this adds to its cost.

• Fatigue: Nitinol’s unique ability to withstand deformation doesn’t mean it is immune to fatigue. Over time and with repeated cycles of deformation, Nitinol can lose its shape memory properties, which is a concern for applications that demand long-lasting performance, such as medical implants and aerospace components.

Environmental Impact: Is It Environmentally Friendly? Safety of Disposal

Producing Nitinol is energy-intensive and requires precise control, making it less environmentally friendly than other metals. Additionally, because Nitinol contains nickel, a known allergen, and titanium, disposal of Nitinol products must be done carefully to prevent environmental contamination. Recycling options for Nitinol are limited, which poses an additional challenge for reducing its environmental footprint.

Material Strength: Comparison to Stainless Steel and Other Metals

Nitinol is prized for its flexibility, but it is not as strong as some other metals like stainless steel in terms of tensile strength. While stainless steel can provide a high level of strength and corrosion resistance, it lacks Nitinol’s shape memory and superelasticity. This trade-off between flexibility and material strength limits Nitinol's applications in certain fields where extreme strength is required.

Longevity: How Long Nitinol Maintains Its Properties

One concern with Nitinol is how long it can maintain its shape memory and superelastic properties, especially in high-stress or high-temperature environments. Prolonged exposure to stress can reduce Nitinol's effectiveness, as the material’s crystal structure eventually degrades, leading to a loss in performance over time. This degradation can be accelerated by environmental factors like temperature and moisture.

Common Questions About Nitinol’s Problems

Here are answers to some frequently asked questions about the limitations of Nitinol:

• Is Nitinol toxic?
  Nitinol itself is generally considered safe, but it contains nickel, which can be a concern for people with nickel allergies. Medical-grade Nitinol used in implants is often treated to minimize the risk of nickel leaching.

• Why aren’t Nitinol engines widely used?
  Although Nitinol has been explored for heat engines, the high cost of Nitinol production and the limitations in maintaining its shape memory under high-stress conditions have prevented it from becoming widely used in engine applications.

• Is Nitinol stronger than stainless steel?
  Nitinol is not as strong as stainless steel in terms of tensile strength, but it has the advantage of flexibility and shape memory. Stainless steel is often chosen for applications requiring high strength, while Nitinol is favored for flexibility and resilience.

• What happens to Nitinol when heated or placed in hot water?
  When heated above its transition temperature, Nitinol will revert to its original shape. If placed in hot water, it may also undergo this transformation, depending on the temperature. This change is reversible up to a certain number of cycles, after which Nitinol’s performance may degrade.

• What makes Nitinol special?
  Nitinol's shape memory effect and superelasticity make it a standout material. Unlike traditional metals, it can return to a pre-set shape after deformation and withstand significant bending without permanent distortion, making it highly valuable in applications like stents and robotic components.







Why is Nitinol Expensive?

Nitinol’s unique properties come at a high cost. The production and quality control processes involved in creating a reliable Nitinol alloy contribute to its premium price, as do its specialized applications.

Material Rarity and Cost of Production

Nitinol is composed of nearly equal parts nickel and titanium, both of which are relatively costly materials. Titanium, in particular, is expensive to extract and process due to its reactivity and high melting point. Additionally, the alloy must be carefully engineered to achieve precise ratios, as small deviations can significantly impact Nitinol’s shape memory and superelastic properties.

Complexity of Manufacturing and Quality Control

Manufacturing Nitinol is a complex, energy-intensive process that requires exact control over the alloy's composition, processing, and heat treatment. Maintaining Nitinol’s properties—like the transformation temperature—is challenging, and extensive quality control measures are necessary to ensure that each batch meets strict standards, especially for medical and aerospace applications. These rigorous procedures add substantial time and cost to production.

Specialized Uses and Technological Barriers

Nitinol’s high cost is also due to its specialized uses in fields like medicine, aerospace, and robotics, where performance and reliability are crucial. Its unique capabilities make it irreplaceable in certain applications, such as stents and surgical instruments, where its shape memory effect is a game-changer. However, the expertise required to work with Nitinol, alongside its limited production scale, results in higher prices compared to more commonly used materials like stainless steel.

Common Questions About Nitinol’s Cost

Here are answers to frequently asked questions regarding the cost of Nitinol:

• Why is Nitinol more expensive than stainless steel?
  Nitinol is more costly because of the price of raw materials (nickel and titanium), the complexity of the manufacturing process, and the extensive quality control needed to maintain its properties. Stainless steel is less expensive to produce and does not require the same level of precision or quality checks.

• Why is Nitinol hard to make?
  Producing Nitinol is challenging due to the precise control needed over its composition and processing. Achieving the exact nickel-titanium balance is critical for the alloy to exhibit shape memory and superelasticity, and even minor variations can affect its performance.

• How do I activate Nitinol?
  Nitinol is "activated" by heating it above its transformation temperature, which causes it to revert to its pre-set shape. This shape memory effect is reversible, so Nitinol can return to its programmed shape when reheated after deformation, provided it hasn’t been overused.

• What are the costs of using Nitinol?
  Beyond the material cost, using Nitinol requires specialized expertise, precision machining, and strict quality assurance, particularly for medical and aerospace applications. These factors add to the overall cost of Nitinol products and make them more expensive than alternatives like stainless steel.

Safety of Nitinol in the Human Body

Nitinol's unique properties—shape memory and superelasticity—make it an excellent material for medical applications, especially in implants. However, safety is a primary concern, particularly for use within the human body. Here’s a look at the key factors that make Nitinol safe and effective in medical settings.

Medical Applications of Nitinol: Is It Safe for Implants?

Nitinol is widely used in medical implants, including stents, guidewires, orthopedic devices, and dental tools. Its ability to return to a pre-set shape and withstand significant deformation makes it ideal for devices that need to adapt to the body’s movement. In terms of safety, Nitinol has been extensively tested and found to be biocompatible, meaning it does not cause adverse reactions when implanted in the body. However, medical-grade Nitinol is often treated with coatings or undergoes surface treatments to further reduce the risk of nickel leaching, making it even safer for long-term use in implants.

MRI Compatibility and Biocompatibility

Nitinol is generally considered safe for MRI procedures, which is essential for many patients with implants who may require imaging over the course of their lives. Nitinol's non-magnetic properties make it compatible with MRI machines, allowing for clear imaging without interference or risks. Additionally, its biocompatibility ensures that it does not provoke an immune response, and its elasticity allows it to endure body movements without fracturing.

Toxicity and Corrosion Resistance of Nitinol Implants

One of the main concerns with Nitinol is its nickel content, as nickel can be toxic in high doses and can cause allergic reactions. However, in Nitinol alloys used for implants, the nickel is tightly bound within the material’s structure, minimizing the risk of nickel exposure. Furthermore, Nitinol is highly corrosion-resistant, which is vital for maintaining its integrity in the body over long periods. Proper manufacturing and surface treatments help to prevent corrosion and leaching, making Nitinol a safe option for implants.

Common Questions About Nitinol’s Safety in the Human Body

Here are answers to some frequently asked questions regarding Nitinol’s safety for medical use:

• Is Nitinol safe in MRI?
  Yes, Nitinol is safe for MRI procedures. Its non-magnetic nature ensures compatibility with MRI machines, making it suitable for patients who may need MRI imaging.

• Is Nitinol safe for orthopedic implants?
  Nitinol is safe for orthopedic implants and is commonly used in applications like bone plates, screws, and other devices. Its superelasticity and shape memory allow it to adapt to the body's movement, enhancing the longevity and performance of orthopedic devices.

• How is Nitinol used in medicine?
  Nitinol is used in a variety of medical applications, including stents, guidewires, bone anchors, and dental archwires. Its ability to maintain a preset shape and withstand repeated movement without deformation makes it invaluable in medical devices that require flexibility and durability.

• Does Nitinol wear out or fatigue in the human body?
  Although Nitinol is highly durable, it is still susceptible to fatigue over time, particularly in high-stress environments like the human body. However, medical-grade Nitinol is engineered to withstand extensive cycles of deformation, and with proper care, it remains functional over many years in implants. Surface treatments further improve its resistance to wear and fatigue.





Conclusion

Nitinol has revolutionized industries from medical devices to aerospace, thanks to its remarkable shape memory and superelastic properties. Its unique capabilities continue to drive innovation, with ongoing research exploring new ways to utilize Nitinol’s potential.

Future of Nitinol: Emerging Applications and Developments

As Nitinol technology advances, we are seeing more applications beyond traditional uses. From cutting-edge robotics to flexible electronics and even minimally invasive surgical tools, Nitinol is paving the way for smarter, more adaptive solutions across various sectors. Researchers are constantly refining its properties to enhance durability, corrosion resistance, and biocompatibility, opening doors to applications previously thought impossible.

New Areas of Research and Technological Advancements

Future research is focusing on optimizing the manufacturing process, improving the environmental impact, and expanding Nitinol’s application range. For example, advancements in 3D printing with Nitinol and the development of more precise surface treatments are expected to make the material even more versatile and affordable, while maintaining its high-performance standards.
