1. Introduction

The Unique Properties of Titanium

Titanium is renowned for its exceptional strength-to-weight ratio, corrosion resistance, and biocompatibility. These properties make it indispensable in industries where performance and durability are critical.

• High Strength: Comparable to steel but 45% lighter

• Corrosion Resistance: Withstands harsh environments, including saltwater and chemicals

• Biocompatibility: Non-toxic and compatible with human tissue, ideal for medical implants

Why Titanium Welding is Critical

Titanium’s superior properties come with welding challenges, making specialized techniques essential for:

• Aerospace: Airframe structures, jet engine components

• Medical: Surgical implants, prosthetics, dental devices

• Industrial: Chemical processing, marine, and power generation

Common Challenges in Titanium Welding

1. Contamination Risk: Reacts with oxygen, nitrogen, and hydrogen at high temperatures, leading to brittleness.

2. Heat Control: Excessive heat causes grain growth, weakening the weld.

3. Shielding Requirements: Requires ultra-high-purity inert gas to prevent oxidation.

2. Key Factors for Successful Titanium Welding

Temperature Control

Optimal Welding Temperature Range (1650°C–1700°C)

• Titanium melts at 1668°C (3034°F) but must be welded in a controlled heat range.

• Too cold: Incomplete fusion.

• Too hot: Excessive grain growth, reducing strength.

Risks of Overheating

• Grain Coarsening: Weakens the weld zone.

• Embrittlement: Oxygen/nitrogen absorption makes the metal brittle.

Solution: Use pulsed TIG welding to regulate heat input precisely.

Material Preparation

Cleaning Methods

1. Solvent Degreasing – Removes oils and contaminants (acetone or alcohol).

2. Mechanical Brushing – Stainless steel wire brushes (dedicated to titanium only).

3. Acid Pickling – Nitric/HF acid solution removes surface oxides.

Why Surface Contamination Must Be Avoided

• Even fingerprints can introduce carbon, leading to weld defects.

• Best Practice: Weld within 48 hours of cleaning to prevent re-oxidation.

Shielding Gas Requirements

Why 99.999% Argon is Mandatory

• Any impurities (oxygen, nitrogen, moisture) cause weld contamination.

• Trailing Shields & Back Purging ensure full gas coverage during and after welding.

Common Mistake: Using lower-purity argon (e.g., 99.9%) leads to porous, brittle welds.











3. Titanium Welding Processes Compared

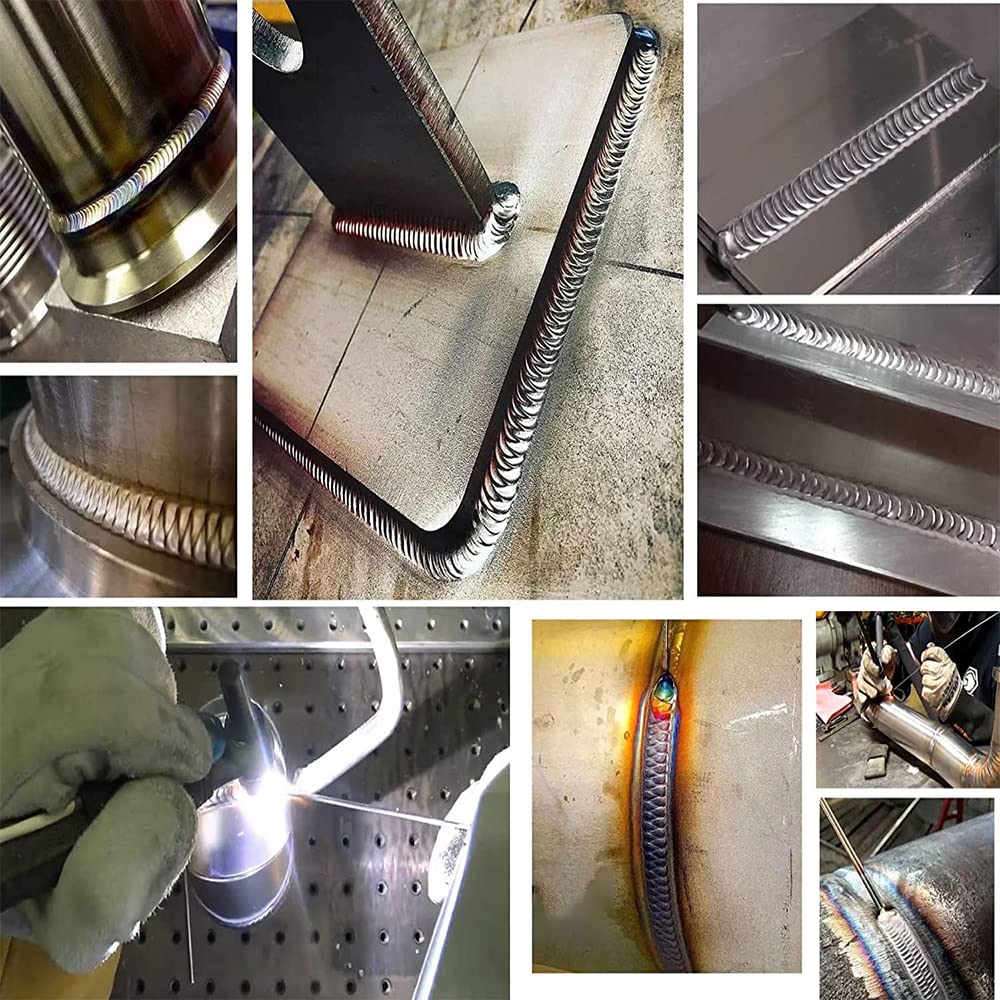

TIG (GTAW) Welding - The Precision Choice

Best for: Thin sections (0.5–12mm) requiring high-quality finishes
Key Advantages:
✔ Excellent control over heat input
✔ Produces clean, spatter-free welds
✔ Ideal for aerospace components and medical implants

Limitations:
✖ Slow process compared to others
✖ Requires highly skilled operators

Industries Using It:

• Aerospace (aircraft hydraulic systems)

• Medical (surgical instrument fabrication)

Electron Beam Welding - For Deep, Contamination-Free Joints

Best for: Thick materials (>25mm) and critical applications
Key Advantages:
✔ Deep penetration in single pass
✔ Vacuum environment prevents contamination
✔ Minimal heat-affected zone

Limitations:
✖ Requires expensive equipment
✖ Limited to vacuum chamber sizes

Industries Using It:

• Nuclear (reactor components)

• Defense (missile casings)

Laser Welding - Micro-Welding Perfection

Best for: Ultra-thin materials (<0.3mm) and complex geometries
Key Advantages:
✔ Extremely precise (hair-thin welds possible)
✔ High speed (up to 10x faster than TIG)
✔ Minimal distortion

Limitations:
✖ High equipment costs
✖ Limited to accessible joint designs

Industries Using It:

• Electronics (pacemaker components)

• Jewelry (titanium watch cases)

4. Common Titanium Welding Problems & Solutions

Problem #1: Porosity & Contamination

What Happens:
Small gas pockets form in the weld, weakening its structure

Main Causes:

• Insufficient shielding gas coverage

• Contaminated base metal (oils, oxides)

Proven Solutions:

1. Use 99.999% argon with proper trailing shields

2. Implement strict cleaning protocols before welding

3. Store cleaned parts in sealed containers

Problem #2: Cracking & Brittleness

What Happens:
Weld develops fractures during or after cooling

Main Causes:

• Oxygen/nitrogen absorption at high temps

• Rapid cooling rates

Proven Solutions:

1. Apply post-weld heat treatment (PWHT)

2. Use pulsed current to control cooling

3. Select matching filler metals (ERTi-5 for Grade 5)

Problem #3: Distortion & Warping

What Happens:
Parts bend or twist from uneven heating

Main Causes:

• Titanium's high thermal conductivity

• Excessive heat input

Proven Solutions:

1. Use precision fixturing during welding

2. Employ tack welding at intervals

3. Apply backstep welding technique

Expert Tip:
"Always conduct dye penetrant testing after welding to catch hidden defects before they cause failures." - YICHOU Lead Welding Engineer

Need Reliable Titanium Welding?
YICHOU's certified welders solve these problems daily





5. Titanium Grades & Their Weldability

Commercially Pure Titanium (Grades 1-4) - The Most Weldable

Key Properties:

• Excellent corrosion resistance

• High ductility and formability

• Lowest strength among titanium alloys

Welding Characteristics:
✓ Easiest to weld of all titanium grades
✓ Minimal risk of cracking
✓ Can be welded autogenously (without filler)

Common Applications:

• Chemical processing equipment

• Heat exchangers

• Marine components

Recommended Process: GTAW (TIG) with matching filler (ERTi-1/2)

Ti-6Al-4V (Grade 5) - The Aerospace Workhorse

Key Properties:

• Highest strength-to-weight ratio

• Good fatigue resistance

• Moderate corrosion resistance

Welding Challenges:
⚠ Sensitive to contamination
⚠ Requires precise heat control
⚠ Post-weld heat treatment often needed

Critical Techniques:

1. Strict argon shielding (back purging mandatory)

2. Low interpass temperature (<200°C)

3. Use ERTi-5 filler metal

Common Applications:

• Aircraft structural components

• Medical implants

• High-performance automotive parts

Beta Alloys (Grades 19, 23) - High-Strength Challenges

Key Properties:

• Highest strength titanium alloys

• Excellent fatigue and fracture toughness

• Can be heat treated

Welding Difficulties:
✖ Extremely contamination-sensitive
✖ Requires specialized procedures
✖ Post-weld aging usually necessary

Successful Welding Requires:

• Electron beam or laser welding preferred

• Ultra-high purity inert environment

• Experienced welding technicians

Common Applications:

• Aircraft landing gear

• Orthopedic trauma devices

• Downhole oilfield tools

6. Titanium Welding FAQs (Answering Real User Questions)

Q: Can you weld titanium to steel?

A: No, direct welding creates brittle intermetallic compounds. Alternatives:

1. Use explosion welding for joints

2. Mechanical fastening

3. Special bimetallic transition joints

Q: Is titanium harder to weld than stainless steel?

A: Yes, because:

• Reacts with air at lower temperatures

• Requires perfect shielding

• More sensitive to contamination

• Needs cleaner work environment

Q: What filler metal is used for titanium welding?

A: Always use matching-grade filler rods:

• CP Titanium: ERTi-1/2

• Ti-6Al-4V: ERTi-5

• Beta alloys: Specialized fillers (e.g., Ti-15V-3Cr-3Sn-3Al)

Q: Can you cold weld titanium?

A: No, titanium requires heat input for welding. Cold welding:
✖ Doesn't work due to titanium's oxide layer
✖ Would create weak, contaminated joints

Proper Alternatives:

• TIG, Laser, or Electron Beam welding

• Friction stir welding for some applications

Pro Tip:
"Always conduct a bend test on your first weld sample to verify ductility before full production." - YICHOU Quality Control Manual

Need Certified Titanium Welding?
YICHOU's welding engineers can help you select the right grade and process.

7. Best Practices for High-Quality Titanium Welds

1. Always Use High-Purity Argon Shielding (99.999% or Better)

• Why it matters: Even small amounts of oxygen, nitrogen, or moisture cause weld embrittlement.

• Implementation:

  • Use trailing shields for extended gas coverage

  • Back purge all joints (minimum 20 CFH flow rate)

  • Replace gas hoses regularly (micro-leaks cause contamination)

2. Clean Surfaces Meticulously Before Welding

• Step-by-Step Cleaning Process:

  1. Degrease with acetone (not alcohol - leaves residue)

  2. Mechanically clean with stainless steel brush (titanium-dedicated only)

  3. Acid etch (10% HNO3 + 2% HF solution) for critical applications

• Critical Rule: Weld within 4 hours of cleaning

3. Use Pulsed TIG for Optimal Heat Control

• Settings That Work:

  • Background current: 30-50% of peak

  • Pulse frequency: 1-3 Hz for thin sections

  • Balance: 70-80% electrode negative

• Benefits:

  • Reduces heat input by 40% vs. standard TIG

  • Prevents grain growth in HAZ

4. Mandatory Post-Weld Inspections

Method	What It Detects	When to Use
Dye Penetrant	Surface cracks/porosity	All non-porous welds
X-Ray	Internal defects	Pressure vessels, aerospace
Ultrasonic	Subsurface flaws	Thick sections (>10mm)

8. Conclusion: Achieving Perfect Titanium Welds

Key Takeaways

1. Material Matters: Grade selection directly impacts weldability - CP titanium is forgiving, beta alloys demand expertise.

2. Environment is Everything: From cleaning to shielding, contamination control can't be compromised.

3. Process Precision: Matching the right welding method (TIG/EB/Laser) to your application saves time and money.

Why Partner With Titanium Welding Specialists?

At YICHOU, our certified welders:

• Follow AWS D17.1 aerospace welding procedures

• Maintain Class 100 cleanrooms for critical welds

• Provide full documentation (including MTRs and NDT reports)

"The difference between a good titanium weld and a failed component often comes down to millimeter-level gas coverage."

• YICHOU Lead Welding Engineer

Get Your Custom Quote Today

• Contact Us: Share your project details with our experienced team, and let us provide tailored solutions for your unique needs.
• Fast & Competitive Pricing: Receive a detailed quote quickly, ensuring your project stays on track.
• Reach Out Anytime:
  • Email: [email protected]
  • Call/WhatsApp: +86 13355741031
  • Live Chat: Connect with our support team instantly via our website's chat feature
