Introduction: The Unseen Lever in Your Fab's Performance

In the high-stakes, nanometer-scale world of semiconductor manufacturing, focus naturally converges on the headline technologies: advanced lithography scanners, atomic layer deposition chambers, and intricate etching tools. Procurement teams meticulously evaluate these multi-million-dollar systems. Yet, often treated as a simple line-item component, the wafer end effector—the final, direct point of contact with every precious wafer—is paradoxically overlooked.

Consider this reality: A single 300mm advanced logic wafer can represent over $50,000 in value by the final process step. This wafer is handled hundreds, sometimes thousands, of times between its arrival as bare silicon and its departure as a complex integrated circuit. Each transfer—from FOUP to station, through process modules, and back—is performed by a robot arm whose sole interface with this value is the end effector.

A failure here is not merely a mechanical hiccup; it is a direct assault on yield. A micro-scratch from a poorly finished edge, electrostatic discharge (ESD) from an unmanaged material, a particle shed from a substandard coating, or a misalignment from a warped fork—all culminate in die loss, rework, or even a full-lot scrap. The financial impact dwarfs the cost of the end effector itself.

This guide moves beyond a simple component specification. It is a procurement-focused analysis of why partnering with a dedicated, engineering-led wafer end effector manufacturer—not just a distributor or generic parts supplier—is one of the most consequential decisions you can make for fab efficiency, yield protection, and total cost of ownership.

Section 1: The End Effector – More Than a "Fork": Core Types and Procurement Implications

Understanding the functional types is the first step in specifying the right tool. Each type presents unique manufacturing challenges and supplier qualification requirements.

1. Vacuum End Effectors

The workhorse of the fab, using controlled vacuum through precisely placed ports to secure the wafer.

• Procurement Insight: The devil is in the details. The size, pattern, and chamfer of vacuum ports are not arbitrary. A top manufacturer will model airflow to ensure uniform pressure distribution, preventing slip or excessive stress on thin wafers. Ask suppliers for their port design philosophy and CFD analysis.

2. Bernoulli (Non-Contact) End Effectors

Utilizes the Bernoulli principle to levitate the wafer on a cushion of gas, ideal for backside-sensitive processes or ultra-thin wafers (<100µm).

• Procurement Insight: Manufacturing precision is non-negotiable. The contoured gas channels must be flawlessly machined to create a stable, laminar flow. Any turbulence can cause wafer vibration or even contact. Inquire about their surface profiling capability and how they validate lift force uniformity.

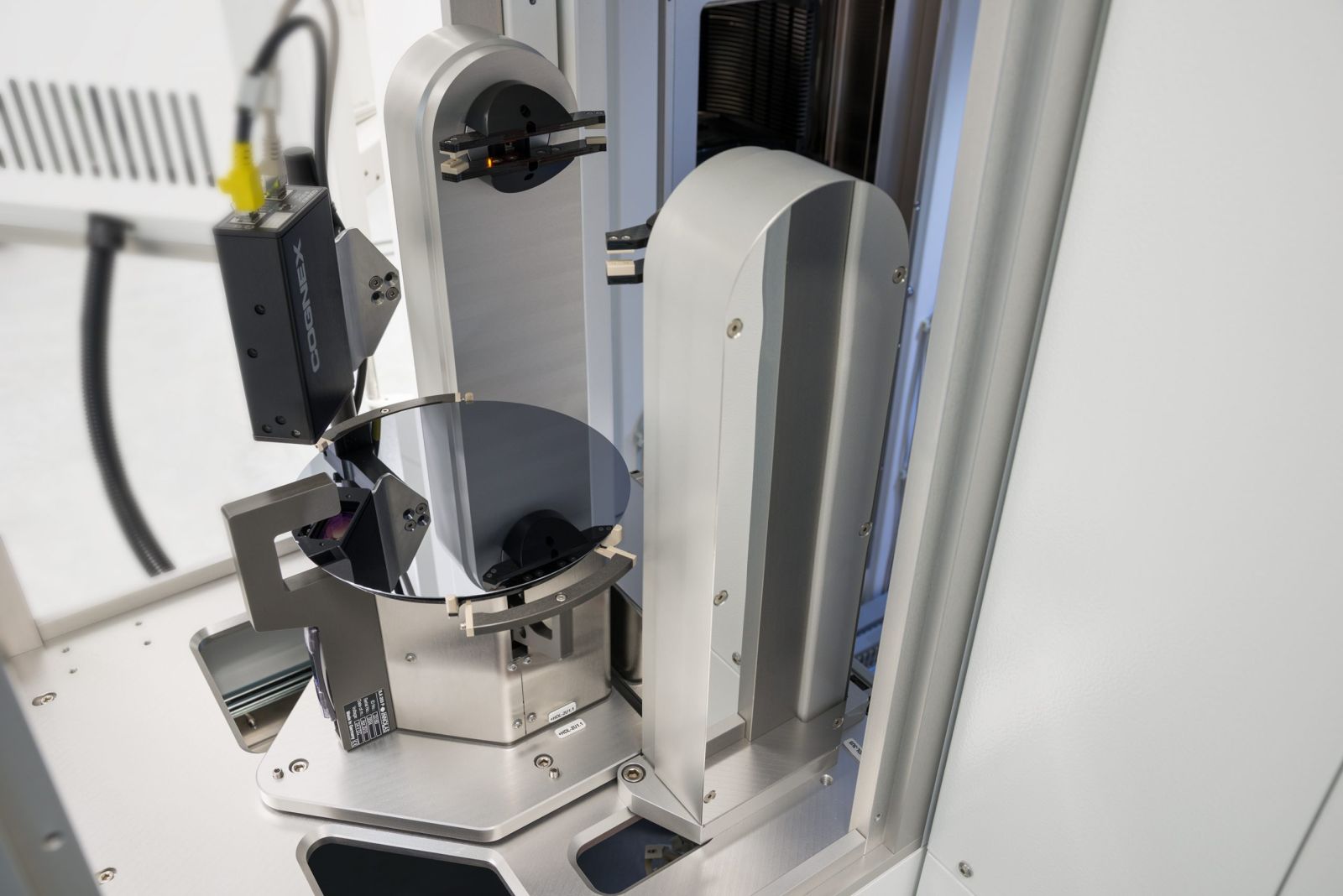

3. Edge-Gripping / Notch/Flat Alignment End Effectors

Mechanically grips the wafer periphery or uses pins to locate the notch/flat for precise angular orientation, critical for lithography and metrology.

• Procurement Insight: This is a test of metrology-grade manufacturing. The alignment mechanism must achieve repeatability in the arc-second range. The grip force must be perfectly calibrated—too high risks micro-cracking at the edge (a latent defect), too low risks a drop. Demand data on grip force consistency and alignment repeatability across the unit's lifespan.

4. Custom & Hybrid Solutions

For handling warped wafers, carriers with tapes, or advanced packaging substrates.

• Procurement Insight: This is where a true manufacturer separates from a reseller. A partner with deep in-house engineering and rapid prototyping can co-develop a solution. Assess their design review process and prototype lead times. Do they have application engineers who can speak to thermal expansion, chemical resistance, or RF transparency?

Section 2: The Five Pillars of Manufacturing Excellence: Your Supplier Evaluation Checklist

When evaluating a potential end effector manufacturer, move beyond basic specs and price. Interrogate their competency across these five pillars.

Pillar 1: Advanced Materials Mastery

The material is the foundation of performance.

• Aerospace-Grade Carbon Fiber Composites: The standard for rigidity and lightness. Not all carbon fiber is equal. Top manufacturers select specific prepreg weaves and resin systems for optimal stiffness-to-weight and near-zero CTE (Coefficient of Thermal Expansion). They understand ply orientation for directional strength.

• High-Performance Polymers (PEEK, PEI, VESPEL): Chosen for low particle generation, inherent cleanliness, and chemical resistance. Precision machining of these polymers is an art—improper tooling or feeds/speeds can melt, stress, or fibrillate the material, creating future particle sources.

• Specialty Coatings: Conductive coatings for ESD protection, diamond-like carbon (DLC) for wear resistance, or proprietary low-friction coatings. The adhesion process (e.g., plasma pre-treatment) is as critical as the coating itself. Peeling coating is a catastrophic particle generator.

• Supplier Question: "Can you provide full material traceability, including certificates of conformance for raw composite sheets or polymer rods, and details of your surface treatment processes prior to coating?"

Pillar 2: Micron-Level Precision Machining

This is the core of manufacturing. Tolerances are measured in microns, not millimeters.

• Multi-Axis CNC Machining: The ability to machine complex 3D contours from a solid block of carbon fiber or PEEK is essential. Look for 5-axis capabilities.

• Post-Machining Stress Relief: Machining can induce micro-stresses. The best manufacturers have proprietary thermal or chemical cycles to relieve this stress, ensuring long-term dimensional stability and preventing warpage over time.

• Metrology & Quality Gates: Every critical dimension should be verified with coordinate measuring machines (CMM) or laser scanners. Ask for their in-process quality control (IPQC) checkpoints and final inspection report format.

• Supplier Question: "What are your standard and achievable tolerances for critical features like fork flatness, tip height uniformity, and vacuum port diameters? Can I see a sample inspection report?"

Pillar 3: Proprietary Bonding & Assembly in Controlled Environments

An end effector is often an assembly of multiple materials. The bonding integrity dictates its life.

• Cleanroom Assembly (Class 100/ISO 5 or better): This is non-negotiable. Assembly in a standard machine shop introduces contaminants that will later shed in your fab.

• Adhesive Science: They should use semiconductor-grade, low-outgassing adhesives with controlled cure cycles. The bond line thickness and coverage are precisely controlled.

• Modular & Serviceable Design: Some manufacturers design for field-replaceable components (like wear pads or tips), minimizing downtime and cost. This is a sign of thoughtful, long-term design.

• Supplier Question: "What class cleanroom is used for final assembly and packaging? What is your process for adhesive selection, application, and cure validation?"

Pillar 4: Rigorous, Data-Driven Testing & Validation

This is the ultimate proof of performance. A supplier that cannot provide test data is a major risk.

• Flatness & Coplanarity Mapping: Using optical interferometers or high-precision granite slabs to map the entire wafer-supporting surface.

• Vacuum & Flow Testing: Verifying leak integrity, vacuum hold force, and (for Bernoulli) flow rate and uniformity.

• Particle & Additive Testing: Conducting shake or air-jet tests per IEST or modified SEMI standards, with particle counting for sizes down to 0.1µm.

• ESD Performance Testing: Measuring surface resistivity and static decay per ANSI/ESD S20.20.

• Dynamic Performance & Life Cycle Testing: Using robots to perform millions of pick-place cycles while monitoring performance degradation—the true test of durability.

• Supplier Question: "Can you provide a standard test package with the data for each unit, or for a qualification batch? Do you have life-cycle test data I can review?"

Pillar 5: Seamless Integration Support

The best end effector is useless if it doesn't integrate perfectly with your specific robot and software.

• OEM Compatibility Expertise: They should have extensive experience with major robotics platforms (Brooks, Rorze, JEL, DAIHEN, Kawasaki, etc.), understanding their mounting interfaces, stroke lengths, and software handshake protocols.

• Tuning & Calibration Support: A true partner will provide tuning guidelines or even on-site support to optimize vacuum/pressure settings, teaching points, and approach speeds for their specific tool.

• Design for Serviceability: Consider how easy it is to remove and reinstall the tool without hours of robot downtime. Good manufacturers design for this.

• Supplier Question: "For my specific robot model [State Model], can you provide the integration drawing, recommended vacuum settings, and a summary of typical tuning adjustments required?"

Section 3: The True Cost Equation: Why the Cheapest Part is the Most Expensive

Procurement decisions must shift from piece-part price to Total Cost of Ownership (TCO). A premium end effector from a specialist manufacturer impacts several key financial drivers:

1. Yield Loss Prevention: A single particle-induced defect on a critical layer can scrap a die. Over thousands of wafers, the savings from even a 0.1% yield improvement can justify the cost of the entire fleet of premium end effectors.

2. Mean Time Between Failures (MTBF): A robustly manufactured end effector lasts significantly longer—2x to 3x is common—reducing the frequency of replacements, associated labor costs, and production line downtime for swaps.

3. Preventive Maintenance (PM) Costs: High-quality tools exhibit less performance drift (e.g., vacuum decay, particle increase), allowing for extended PM intervals. Their consistency also reduces the time technicians spend on troubleshooting and tuning.

4. Risk Mitigation: The cost of a catastrophic failure—a dropped wafer inside a process tool, causing a multi-day tool downtime for cleanup—is astronomical. Premium manufacturing directly mitigates this risk.

5. Performance at Leading Edge: As nodes shrink to 3nm and below, and wafer thicknesses decrease, the performance demands on the end effector become more extreme. Only partners at the forefront of manufacturing technology can keep pace.

The Procurement Takeaway: When evaluating quotes, create a simple TCO model. Factor in the expected lifespan, estimated yield impact, and PM costs. The price premium of a true manufacturer often disappears, revealing a significant net saving.

Section 4: From Vendor to Partner: A Blueprint for Procurement Engagement

How should a procurement professional engage with a potential end effector manufacturing partner?

Phase 1: Technical Qualification (Before an RFQ)

• Request a formal capabilities presentation from their engineering team.

• Arrange a virtual or in-person factory tour. Pay close attention to their cleanliness protocols, metrology equipment, and testing labs.

• Submit a sample for evaluation. Provide them with your robot and wafer details for a custom sample, then test it rigorously in your facility or a testbed.

Phase 2: The Strategic RFQ

• Structure your RFQ to request evidence, not just claims.

  • "State your flatness specification" vs. "Provide your flatness testing methodology and sample CMM data."

  • "List your materials" vs. "Provide material datasheets and a description of your stress-relief process."

• Include TCO-focused questions: "What is your documented MTBF or expected cycle life? What is your typical warranty and what does it cover?"

• Require references from other fabs or OEMs.

Phase 3: Pilot Program & Ramp

• Start with a small pilot batch (e.g., 5-10 units) for a specific, demanding tool or process.

• Define clear success metrics: particle counts after 50k cycles, zero unplanned downtime, improved wafer placement accuracy.

• Establish a joint review process with the manufacturer's engineering team to share data and feedback.

Conclusion: Securing Your Fab's Silent Foundation

In the relentless pursuit of Moore's Law, every component matters. The wafer end effector, though silent and often unseen, is a fundamental pillar of fab performance. It is a precision instrument where material science, micron-level machining, and cleanroom intelligence converge.

Choosing a supplier for this component cannot be a transactional, price-only decision. It must be a strategic partnership with a manufacturer whose engineering depth, quality obsession, and testing rigor match the criticality of the function.

By elevating your evaluation criteria, focusing on total cost of ownership, and partnering with a true specialist, you do more than procure a part. You invest in yield protection, tool stability, and the smooth, uninterrupted flow of high-value production. You secure a foundational element of your fab's success.
