Introduction: What is a Gear Machine?

If you've ever wondered how the powerful, precise gears inside your car's transmission or a massive industrial wind turbine are made, you've come to the right place. The heart of this process is the gear machine—a sophisticated type of machine tool engineered specifically to carve the perfect teeth into a metal or plastic blank.

At YICHOU, we live and breathe this technology. As a premier gear manufacturer and custom gear manufacturer, we utilize a vast array of advanced gear machining centers to produce high-precision, reliable components for industries worldwide. This guide will demystify the entire process, from raw material to finished product, answering all your questions along the way.

Chapter 1: Gear Manufacturing Defined – More Than Just Cutting Teeth

When we talk about gear manufacturing, we refer to the entire end-to-end process of designing, engineering, and producing gears. It's a symphony of metallurgy, precision engineering, and rigorous quality control.

A Brief History of Gears
The history of gear manufacturing is a fascinating journey. Early wooden gears date back to ancient China and Greece, used in devices like water wheels and the Antikythera mechanism. The Industrial Revolution marked a turning point, with the need for metal gears to power machinery. Today, with CNC (Computer Numerical Control) technology, we can produce gears with microscopic precision, enabling the advanced machinery of the 21st century.

The Four Main Types of Manufacturing Processes
In a broader context, all manufacturing falls into four main categories. Gear production primarily utilizes the first two:

1. Forming: Shaping material without adding or removing it (e.g., forging, casting, injection molding). Some low-cost or high-volume gears are cast or molded, but for high-strength and precision, machining is king.

2. Machining (Subtractive Manufacturing): This is YICHOU's core expertise. It involves removing material from a solid blank to achieve the desired shape—in this case, perfectly formed gear teeth.

3. Joining: Welding or fastening components together.

4. Shearing and Forming: Used for sheet metal.

Why is it Called "Gear"?
The word "gear" originated from the Old Norse word "gervi," meaning "apparatus" or "equipment." It evolved to specifically describe the toothed wheels that make up a driving mechanism.

Chapter 2: The Art of Gear Machining: How Gears Are Made

This is where the magic happens. Gear machining is the subtractive process of creating gear teeth. The question "Are gears milled or cast?" has a nuanced answer: high-performance gears are almost always machined, with milling being just one of several techniques.

Primary Gear Cutting Methods

Let's dive into the most common gear machining processes:

1. Gear Hobbing
This is the most common and efficient method for high-volume production. A hob—a cutting tool that resembles a worm gear—rotates in continuous mesh with the gear blank, gradually cutting the teeth into it. It's fast, accurate, and highly versatile.

• YICHOU Application: We use state-of-the-art CNC hobbing machines for producing large batches of spur and helical gears with exceptional consistency.

2. Gear Shaping
Here, a cutter that looks like a gear reciprocates (moves back and forth) across the gear blank, generating the tooth profile. It's excellent for creating internal gears (gears with teeth on the inside), gears very close to shoulders, and cluster gears.

3. Gear Milling
In this process, a form-milling cutter, whose shape matches the space between the gear teeth, is used to cut one tooth gap at a time. The gear blank is indexed (rotated a precise amount) after each cut. While slower than hobbing for large batches, it is incredibly flexible and ideal for prototyping, custom one-off gears, and large, single gears.

4. Gear Grinding
For the highest levels of precision and surface finish, especially on hardened gears, grinding is the go-to method. After a gear is cut and heat-treated, it can warp slightly. A grinding wheel is used to finish the teeth to ultra-tight tolerances. This process is essential for aerospace, automotive, and other high-performance applications.

5. Broaching
Broaching is a highly productive method where a multi-toothed tool (a broach) is pushed or pulled over a gear blank. Each tooth on the broach takes a shallow cut, and in a single pass, the complete tooth form is generated. It's primarily used for creating internal splines and spur gears.

What is the Fastest Method of Cutting Gears?
For high-volume production of external spur and helical gears, gear hobbing is generally the fastest and most economical method. Its continuous cutting action provides superior efficiency compared to intermittent cutting processes like shaping or milling.

What Machine is Used to Cut Gears?
The primary machines are:

• Gear Hobbing Machines

• Gear Shapers

• CNC Milling Machines (with 4th/5th axis)

• Gear Grinders

• Broaching Machines

At YICHOU, our factory is equipped with a comprehensive range of these machines, allowing us to select the perfect technology for your specific project's requirements for volume, precision, and cost.

Chapter 3: The Building Blocks: Materials and Gear Types

Which Material is Best for Gear Manufacturing?
There is no single "best" material—the choice depends entirely on the application's demands for strength, wear resistance, weight, noise, and cost.

• Steel Alloys (e.g., 4140, 4340, 8620): The most common choice for high-strength and durability. Often used in automotive transmissions and heavy machinery. Can be heat-treated (carburized, hardened) for extreme surface hardness and a tough core.

• Cast Iron: Excellent for damping vibrations, making it ideal for large, heavy-duty machinery where noise reduction is important. It's also machineable and cost-effective.

• Brass & Bronze: Offer good corrosion resistance and low friction. Often used for worm wheels that mate with steel worm gears, as they wear well against harder materials.

• Plastics (Nylon, Acetal/Delrin): YICHOU also makes plastic gears. These are lightweight, quiet, corrosion-resistant, and require no lubrication. Perfect for food processing, medical devices, and consumer electronics.

The 7 Most Common Types of Gears
Gears are classified based on the arrangement of their shafts and the shape of their teeth. Here are the seven fundamental types:

1. Spur Gears: The simplest and most common. They have straight teeth mounted on a parallel shaft. They are efficient but can be noisy.

2. Helical Gears: Teeth are cut at an angle (helix), allowing for gradual, smooth engagement. This results in quieter and smoother operation than spur gears, ideal for automotive transmissions.

3. Bevel Gears: Used to transmit power between intersecting shafts, most commonly at a 90-degree angle.

4. Worm Gears: Consist of a screw-like worm that meshes with a worm wheel. They provide very high reduction ratios and can be self-locking (the gear cannot drive the worm).

5. Rack and Pinion: Converts rotational motion into linear motion. A round gear (pinion) meshes with a linear gear (rack). Used in steering systems.

6. Internal Gears: Teeth are cut on the inside of a cylinder. They mesh with standard spur gears and allow for compact designs.

7. Planetary Gears (Epicyclic Gears): Feature a central "sun" gear, planet gears, and a ring gear. They offer high power density and reduction in a compact space, common in automatic transmissions and aviation.

How YICHOU Ensures Quality
Quality isn't an afterthought; it's integrated into every step. We employ state-of-the-art coordinate measuring machines (CMMs) and specialized gear inspection equipment to verify every critical dimension—from tooth profile and lead to pitch. This ensures that every gear we ship as a gear box manufacturer or component supplier meets or exceeds your specifications.

Chapter 4: Gears in Action: 5 Machines That Rely on Our Expertise

Gears are the unsung heroes of the mechanical world. Here are five machines that depend on the high-quality gears we manufacture:

1. Automotive Transmissions: This is where most people interact with gears daily. The different gear ratios (1,2,3,4,5,6) allow the engine to operate efficiently at various vehicle speeds. The debate of "5 or 6 gears?" centers on having more, closer ratios for better performance and fuel economy, which is why modern cars often have 6, 8, or even 10-speed transmissions.

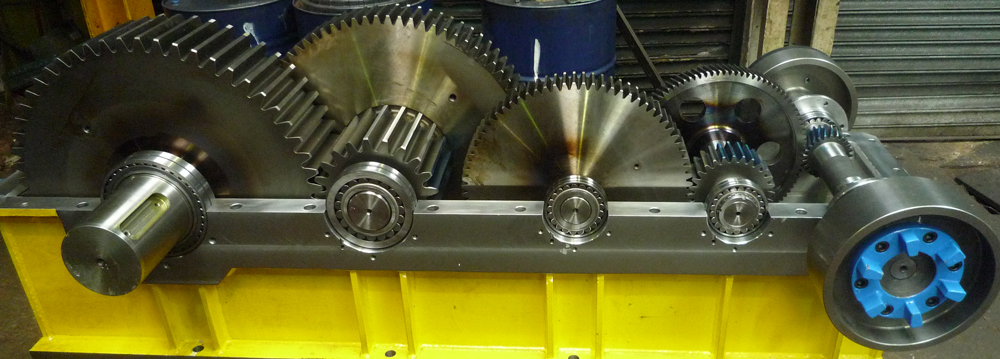

2. Industrial Gearboxes: As a leading gear box manufacturer, we produce the critical internal components for reducers and increasers used in conveyor systems, mixers, and heavy industrial machinery, converting motor speed and torque to usable levels.

3. CNC Machine Tools: The "7 basic types of machine tools" (drilling, milling, turning, etc.) all rely on precision gears and ball screws within their drives and spindles to move cutting tools with extreme accuracy.

4. Agricultural Machinery: From tractors to combines, robust gears are essential for transmitting immense power to wheels, implements, and processing mechanisms, often in dirty, demanding environments.

5. Robotics and Automation: Precision, lightweight, and zero-backlash gears are critical for the accurate and repeatable movement of robotic arms in manufacturing and assembly lines.

Conclusion: Your Partner in Precision Power Transmission

The world of gear manufacturing is complex, blending timeless mechanical principles with cutting-edge technology. From selecting the right material and gear type to employing the optimal gear machining process, every decision impacts performance, longevity, and cost.

At YICHOU, we have the expertise, technology, and commitment to quality to be your trusted partner. Whether you need a prototype gear, a custom batch, or a fully assembled gear box, we have the capabilities to deliver.

Ready to power your next project?
Contact the YICHOU team today for a consultation and quote. Let our expertise in custom gear manufacturing drive your success.

FAQ Section

Q: What is a gear maker called?
A: A gear maker is typically called a gear manufacturer, gear machinist, or a gear cutting specialist. Companies like YICHOU that focus on this craft are often referred to as gear manufacturing companies.

Q: Are gears milled or cast?
A: Both! High-precision, high-strength gears are typically machined (milled, hobbed, shaped). However, for some high-volume, lower-strength applications (like simple toys or some appliances), gears can be die-cast or molded from metal or plastic. For critical applications, machining is the standard.

Q: What are the three most common machining processes?
A: In general machining: Milling, Turning, and Drilling. In gear-specific machining: Hobbing, Shaping, and Grinding are among the most prevalent.

Q: What is the difference between a 5-speed and 6-speed gearbox?
A: A 6-speed gearbox has an additional gear ratio. This allows the engine to operate closer to its optimal RPM across a wider range of vehicle speeds, typically resulting in better acceleration and improved fuel economy compared to a 5-speed.

Q: Who is USA Standard Gear?
A: USA Standard Gear is a separate company known for manufacturing aftermarket automotive transmission gears and differentials. At YICHOU, we focus on precision custom gears for a broad range of industrial and commercial applications.
