Introduction

Design engineers and materials specialists working in aerospace, subsea oil and gas, hydrogen fuel cells, and semiconductor manufacturing face a constant challenge. The environments in which their components operate are unforgiving. Subsea depths of three thousand meters create pressures that can crush standard enclosures. Semiconductor etching chambers expose parts to aggressive plasma gases that degrade most materials within hours. Hydrogen fuel cells operate under acidic conditions with constant thermal cycling.

Choosing the wrong surface finish in these applications leads to catastrophic failure. This is not about cosmetic fading or minor rust spots. This is about hydrogen embrittlement that causes sudden cracking, galvanic corrosion that eats through critical sealing surfaces, or coating delamination that contaminates sensitive fluid channels. Standard online guides often focus on basic comparisons like anodizing versus powder coating for consumer goods. They mention terms like durability and appearance but ignore the submicron precision, chemical resistance, and atomic-level structural integrity that extreme environments demand.

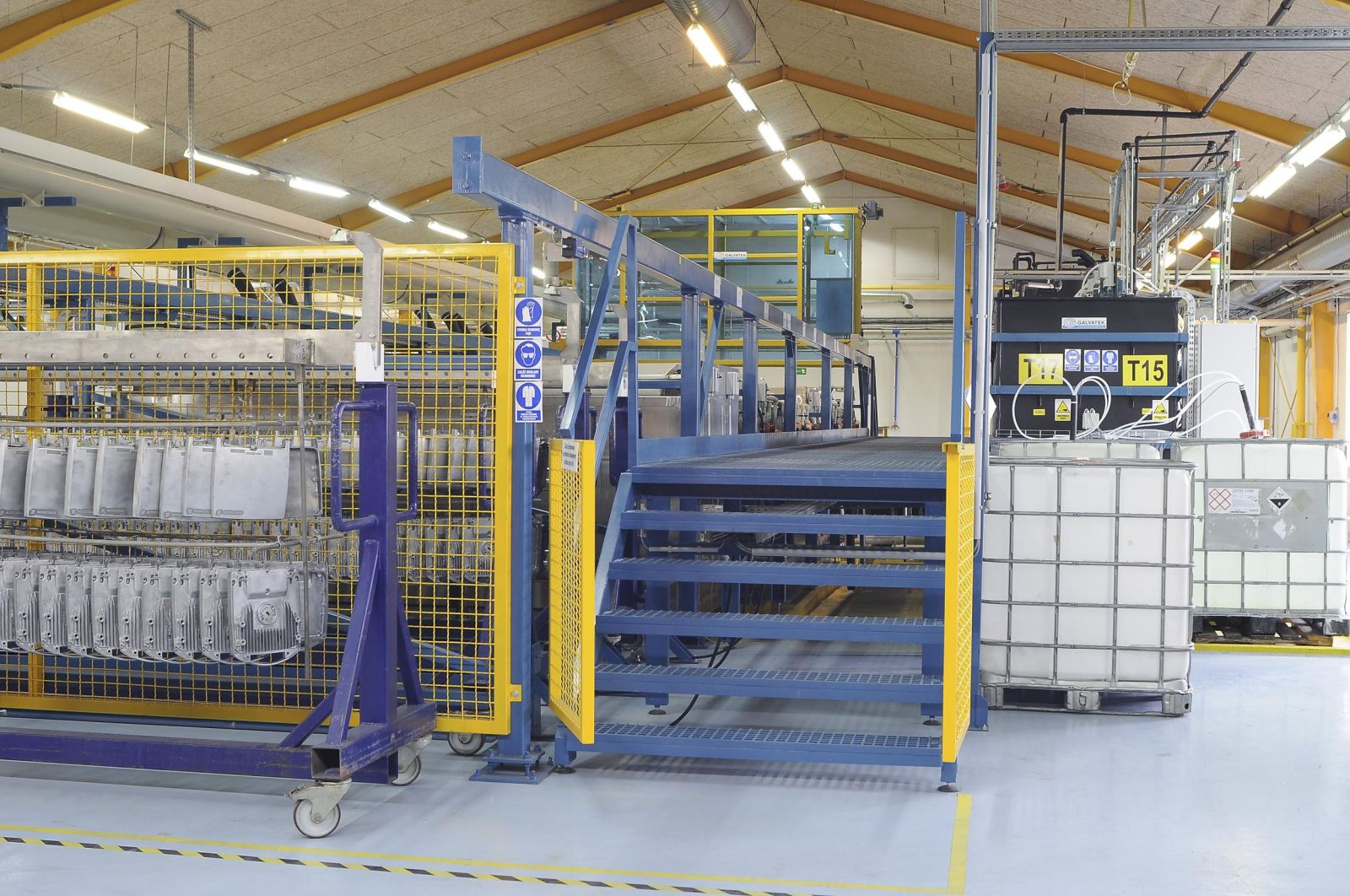

This guide provides a technical comparison of three primary surface treatment processes: anodizing, chemical etching, and plating. It explains why high-performance industries avoid certain coatings, how to achieve burr-free microchannels, and why electroless nickel plating thickness must be controlled within tight tolerances. AS9100D and ISO 9001 certified manufacturers integrate these processes with advanced CNC machining and diffusion bonding to deliver complete material architecture for severe duty applications.

Part One: Anodizing versus Powder Coating and Why High Performance Industries Skip the Powder

The most common surface treatment question engineers ask is anodizing versus powder coating. For commercial hardware like bicycle frames or outdoor furniture, powder coating offers excellent cosmetic durability and impact resistance. However, for precision components used in extreme environments, powder coating is rarely the right choice. Understanding why requires examining coating thickness, tolerance control, structural risks, and pretreatment requirements.

Coating Thickness and Tolerance Control

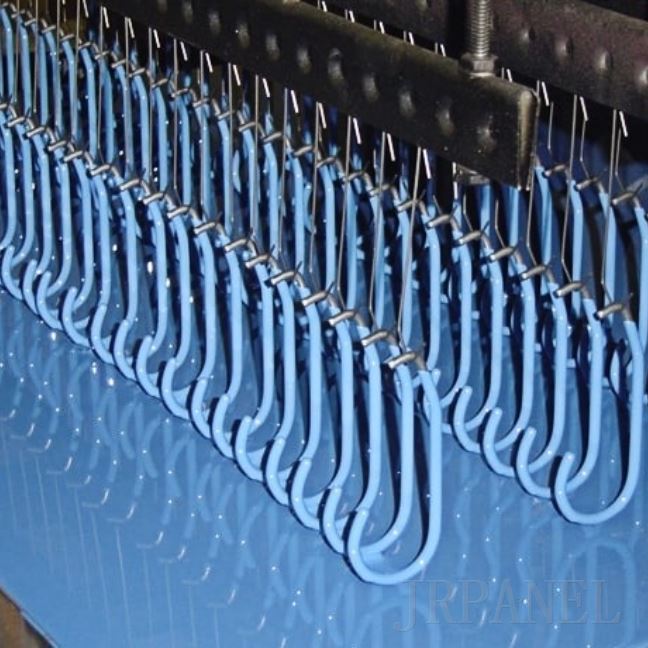

Powder coating applies a dry powder that is electrostatically charged and then cured under heat. The resulting layer typically measures between fifty and one hundred twenty five microns thick. This may seem thin, but for components with tolerances measured in thousandths of a millimeter, it is unacceptable. A bearing journal or valve seat designed with a clearance of twenty five microns will fail when coated with a layer that exceeds fifty microns.

Anodizing works differently. It is an electrochemical process that converts the surface of aluminum into aluminum oxide. Unlike a coating that sits on top of the metal, the oxide layer grows into the substrate. The thickness ranges from five to fifty microns for hard coat anodizing Type III. Because anodizing does not add a separate layer but instead transforms the existing metal, dimensional changes are predictable and minimal. Approximately half of the oxide thickness penetrates into the material while the other half builds outward. This allows engineers to design pre-anodized dimensions that maintain final tolerances within five microns.

For subsea connectors and aerospace hydraulic manifolds, maintaining precise dimensions is not optional. A deviation of ten microns on a sealing surface creates leak paths under high pressure. Powder coatings cannot achieve this level of precision. They require masking of critical surfaces, and even then, edge buildup and variability across large parts make consistent tolerances impossible.

Structural Risk: Coating Flaking and Contamination

Powder coating forms a hard, continuous film that bonds mechanically to a properly prepared surface. However, under extreme conditions, this bond can fail. Subsea components experience rapid decompression when brought to the surface. The pressure differential can cause trapped gases within the coating to expand, leading to blistering and delamination. Once a powder coating flakes off, the fragments become contaminants.

In cleanroom environments for semiconductor manufacturing, any particle larger than one micron can ruin a wafer. Powder coating flakes floating in cooling fluids or circulating through gas delivery systems create yield-killing defects. Similarly, in hydraulic systems for aircraft or subsea blowout preventers, coating fragments lodge in servo valves or block small orifices. The result is system failure that could have been prevented by choosing an anodized surface.

Anodized aluminum does not flake or peel because it is not a separate layer. The aluminum oxide is an integral part of the metal surface. Even under extreme pressure cycling or thermal shock, the oxide remains attached. If the oxide layer is damaged, it does not produce loose fragments that travel through fluid systems. Instead, it remains as a hard particle that can be flushed out or tolerated in ways that coating debris cannot.

Pretreatment Essentials: How Bead Blasting Surface Roughness Impacts Anodizing

The success of any surface treatment depends on pretreatment. For anodizing, bead blasting is a common mechanical preparation method. Bead blasting surface roughness directly affects the final anodized finish and its performance. The process involves propelling fine glass beads at the aluminum surface to remove machining marks, create a uniform matte appearance, and increase surface area.

Surface roughness measured as Ra or Rz must be controlled. A rough surface with deep valleys holds contaminants that interfere with the anodizing bath chemistry. A surface that is too smooth may not provide enough anchor points for the oxide layer to bond effectively. The optimal roughness range for anodizing is typically between 0.8 and 1.6 microns Ra. Bead blasting achieves this range while producing a consistent, nondirectional texture that masks minor surface imperfections.

However, uncontrolled bead blasting introduces risks. Aggressive blasting with high pressure or large media creates microcracks and compressive stress that reduces fatigue life. For components subjected to cyclic loading, such as aircraft landing gear or subsea connector bodies, this reduction in fatigue strength is unacceptable. Professional finishing providers control bead blasting parameters precisely, using calibrated media sizes, regulated air pressure, and verified coverage to achieve the desired roughness without damaging the substrate.

After bead blasting, thorough cleaning removes embedded media particles and blasting residue. Any remaining contamination prevents uniform anodizing and creates weak spots in the oxide layer. The cleaning process typically involves ultrasonic degreasing followed by acid etching. These steps ensure that the anodized layer grows evenly and achieves specified hardness and corrosion resistance.

Part Two: Chemical Etching Stainless Steel and Titanium for Bipolar Plates and Precision Microchannels

Chemical etching, also known as photochemical machining or chemical milling, offers capabilities that mechanical cutting methods cannot match. The process involves applying a photoresist to the metal sheet, exposing the desired pattern using UV light, developing the resist to expose the areas to be removed, and then immersing the part in a chemical etchant that dissolves the exposed metal. For stainless steel and titanium, this process produces clean, burr-free features without mechanical stress or thermal distortion.

Why Chemical Etching is Preferred for Ultra Thin Flow Fields

Hydrogen fuel cells rely on bipolar plates that distribute reactant gases across the membrane electrode assembly. These plates contain intricate flow fields with channels that are often less than five hundred microns wide and one hundred microns deep. The plates themselves may be only one hundred to three hundred microns thick. Manufacturing these features on such thin material using mechanical methods is nearly impossible.

CNC machining of thin stainless steel or titanium sheets generates burrs along the cut edges. These burrs are problematic for two reasons. First, they can puncture the membrane electrode assembly, creating a direct short circuit or gas crossover that reduces efficiency and causes safety issues. Second, removing burrs from delicate microchannels without damaging the part requires secondary operations that are time consuming and inconsistent.

Laser cutting offers an alternative to mechanical machining, but it introduces its own problems. The intense heat of the laser creates a heat affected zone, or HAZ, where the material undergoes metallurgical changes. In stainless steel 316L, the heat affected zone can form chromium carbides, depleting the material of chromium and reducing its corrosion resistance. In titanium Grade 5, the heat affected zone may form alpha case embrittlement that leads to cracking under fuel cell operating conditions. Additionally, laser cutting leaves dross, or resolidified metal, along the cut edges. This dross alters the flow dynamics within the channels and can break off to contaminate the cell.

Chemical etching eliminates these problems entirely. The etching process removes material uniformly at the molecular level without heat input. There is no heat affected zone, no metallurgical change, and no thermal stress. The etchant attacks the exposed metal isotropically, meaning it cuts in all directions equally. This creates slightly rounded channel corners rather than sharp right angles, but the resulting geometry is smooth and free of burrs or dross. For fuel cell applications, the rounded profile actually improves gas flow distribution and reduces pressure drop compared to sharp machined corners.

Preserving Material Integrity in Stainless Steel 316L and Titanium Grade 5

The materials chosen for extreme environment components are selected for specific properties. Stainless steel 316L offers excellent corrosion resistance due to its molybdenum content and low carbon level. Titanium Grade 5, also known as Ti6Al4V, provides high strength to weight ratio and outstanding resistance to seawater and acidic environments. Any manufacturing process that alters these properties defeats the purpose of selecting these alloys in the first place.

Chemical etching preserves the native material properties because it does not introduce heat or mechanical force. The etchant for stainless steel typically contains ferric chloride and hydrochloric acid. It dissolves iron, chromium, and nickel at controlled rates but does not change the crystal structure or phase composition of the remaining metal. The surface finish after etching may have a slightly matte appearance due to microetching, but the underlying metallurgy remains unchanged.

For titanium, etching requires hydrofluoric acid based solutions that must be handled with extreme care. The process removes the native oxide layer and then dissolves the titanium metal. When properly controlled, etching titanium produces clean surfaces that are ready for subsequent operations like diffusion bonding or plating. The absence of thermal input means no alpha case formation and no hydrogen absorption, both of which are risks with laser or plasma cutting.

Integration with Advanced Vacuum Diffusion Bonding

Combining chemical etching with vacuum diffusion bonding produces multilayer metallic bipolar plates and microchannel heat exchangers. Diffusion bonding joins two or more etched plates by applying heat and pressure in a vacuum environment. The process causes atoms to diffuse across the interface, creating a solid state bond without melting or filler materials.

The key to successful diffusion bonding lies in surface cleanliness and flatness. Chemical etching produces surfaces free of oxides, oils, and contaminants. The microetching effect creates a slightly textured surface that promotes initial contact and atomic diffusion. After etching, plates are immediately transferred to the vacuum bonding press to prevent reoxidation. Temperature and pressure cycles are carefully controlled to achieve full bonding without deforming the delicate flow channels.

The result is a monolithic structure with internal passages that cannot be produced by any other method. These components are used in fuel cell stacks, aerospace cooling systems, and chemical process equipment. The bond strength equals that of the base material, and there are no braze joints or seals that could leak over time.

Part Three: Heavy Duty Plating for Subsea and Semiconductor Service

Plating processes deposit a layer of metal onto a substrate to provide corrosion resistance, wear resistance, electrical conductivity, or other functional properties. For extreme environments, two plating categories dominate: electroless nickel plating for uniform coverage over complex geometries, and precious metal plating for low contact resistance and chemical inertness.

Uniformity is King: Electroless Nickel Plating Versus Electroplating

Traditional electroplating relies on an external electrical current to reduce metal ions onto the part surface. The current density varies with geometry. Sharp corners and external surfaces receive higher current and plate more thickly, while deep holes and internal cavities receive little to no current and remain unplated. This nonuniformity makes electroplating unsuitable for components with complex internal features.

Electroless nickel plating, or ENP, uses an autocatalytic chemical reduction reaction. The part is immersed in a bath containing nickel ions and a reducing agent, typically sodium hypophosphite. The reaction deposits nickel uniformly on all surfaces exposed to the bath, regardless of geometry. Deep blind holes, internal threads, and complex manifolds receive the same thickness as external surfaces. This uniformity is essential for subsea connectors, semiconductor gas distribution blocks, and hydraulic valve bodies.

Controlling electroless nickel plating thickness is critical for engineering corrosion resistant marine parts. Typical thicknesses range from twelve to seventy five microns, with twenty five to fifty microns being common for subsea service. The thickness must be sufficient to provide a barrier against chloride induced pitting corrosion, but not so thick that it fills tight clearance gaps or changes the part function.

Optimizing Electroless Nickel Plating Thickness for Wear Versus Corrosion Resistance

Electroless nickel deposits can be formulated with different phosphorus contents. Low phosphorus ENP, containing two to five percent phosphorus, produces a hard, crystalline deposit with excellent wear resistance. High phosphorus ENP, containing ten to thirteen percent phosphorus, produces an amorphous, nonmagnetic deposit with superior corrosion resistance. Understanding the application determines which type to use.

For subsea components exposed to seawater, high phosphorus ENP is the standard choice. The amorphous structure has no grain boundaries where corrosion can initiate. In ASTM B117 salt spray testing, high phosphorus ENP on steel can exceed one thousand hours without red rust. In actual seawater service, it provides excellent resistance to pitting and crevice corrosion. The typical thickness for subsea service is thirty to fifty microns.

For components that experience sliding wear, such as valve stems or pump pistons, low phosphorus ENP or a postplate heat treatment may be preferred. Low phosphorus deposits as plated have hardness of approximately 600 to 700 Vickers. Heat treating at four hundred degrees Celsius for one hour increases hardness to over 1000 Vickers, approaching the hardness of hard chrome plating. However, heat treatment reduces corrosion resistance, so the tradeoff must be evaluated.

Intermediate phosphorus ENP, containing six to nine percent phosphorus, offers a balance of properties. It is used where both moderate wear and moderate corrosion resistance are required. For many semiconductor and analytical instrument applications, intermediate phosphorus ENP with twenty five microns thickness provides adequate performance.

Precious Metal Plating: Gold and Platinum on Titanium Bipolar Plates

Hydrogen fuel cells require bipolar plates that conduct electricity from cell to cell while resisting the acidic membrane environment. Titanium bipolar plates offer excellent corrosion resistance and low weight, but titanium naturally forms a resistive oxide layer that increases contact resistance. This resistance reduces fuel cell efficiency and generates unwanted heat.

Plating a thin layer of gold or platinum onto the titanium surface solves this problem. Gold has high electrical conductivity and does not oxidize in the fuel cell environment. A gold thickness of only one to three microns reduces contact resistance by several orders of magnitude compared to bare titanium. However, gold is soft and can be abraded by assembly processes or vibration. Platinum is harder and even more inert, but significantly more expensive.

The challenge with precious metal plating on titanium is adhesion. Titanium immediately forms a stable oxide layer when exposed to air. This oxide prevents conventional plating processes from bonding. Successful plating requires a special activation step, often using a hydrofluoric acid based strike solution, that removes the oxide and deposits an initial metallic layer. Following activation, the part is immediately plated with nickel or gold strike before final precious metal deposition.

Using controlled activation and plating sequences, manufacturers achieve consistent precious metal deposits on titanium bipolar plates. The resulting plates have contact resistance below ten milliohms per square centimeter, meeting the requirements of automotive and stationary fuel cell stacks. The precious metal thickness is verified by X ray fluorescence measurement to ensure compliance with customer specifications.

Part Four: Technical Reference Matrix for Extreme Environments

The following data table provides a side by side comparison of surface treatment processes for severe duty applications. Use this reference when selecting a finishing specification for your next project.

Surface Treatment Process	Typical Thickness Range	Best Substrates	Maximum Temperature Resistance	Corrosion Resistance Level	Ideal High Tech Industry Application
Hard Coat Anodizing Type III	25 to 125 microns	Aluminum 6061, 7075, 2024	200°C continuous	Excellent in marine and industrial	Aerospace actuators, subsea housings, hydraulic manifolds
Chemical Etching	Material removal only	Stainless steel 304, 316L, 17-4	Limited by substrate	Substrate dependent, no HAZ	Fuel cell bipolar plates, microchannel coolers, shims
High Phosphorus Electroless Nickel	12 to 75 microns (25-50 for subsea)	Steel, stainless steel, aluminum, copper alloys	85°C continuous (higher with post treat)	Excellent against chloride pitting and caustic environments	Subsea connectors, semiconductor gas lines, oil and gas valves
Precious Metal Gold Plating	1 to 5 microns	Copper, nickel, titanium	Limited by substrate	Excellent in acidic and oxidizing	Fuel cell contact surfaces, MEMS packaging, high reliability connectors

This table reflects typical specifications. Actual performance depends on substrate preparation, process control, and post treatment. Always consult with your finishing provider to verify that the selected process meets your specific environmental and mechanical requirements.

Part Five: High Conversion FAQ for Answer Engines and Featured Snippets

Q1: How does bead blasting surface roughness affect the final anodized finish?

Bead blasting before anodizing creates a uniform matte micro texture that masks minor machining marks and produces a consistent cosmetic appearance. The surface roughness profile, measured as Ra or Rz, determines how the oxide layer grows. A roughness of 0.8 to 1.6 microns Ra provides optimal surface area for oxide anchoring while remaining cleanable. Higher roughness traps contaminants and reduces fatigue life. Lower roughness may not hide imperfections and can result in a glossy, uneven finish. Controlled bead blasting with calibrated media size, air pressure, and coverage time produces the desired roughness for subsequent anodizing.

Q2: Why is chemical etching preferred over laser cutting for ultra thin metallic bipolar plates?

Laser cutting generates intense heat that creates a heat affected zone where the metal undergoes metallurgical changes. In stainless steel, the heat affected zone can form chromium carbides, reducing corrosion resistance. In titanium, it can form alpha case embrittlement that leads to cracking. Laser cutting also leaves dross, or resolidified metal, along cut edges. This dross alters flow dynamics and can break off to contaminate the fuel cell. Chemical etching removes material uniformly at the molecular level without heat input. It produces no heat affected zone, no metallurgical change, no thermal stress, and no burrs or dross. The etched edges are smooth and clean, making them ideal for thin, delicate bipolar plates.

Q3: How do you verify coating integrity for corrosion resistant marine parts?

Verification of electroless nickel plating or anodizing on marine parts follows a multistep process. First, thickness measurement using X ray fluorescence or eddy current testing ensures that the coating meets specification across all surfaces, including internal features. Second, adhesion testing using a cross hatch cutter and tape pull confirms that the coating bonds properly to the substrate. Third, salt spray testing per ASTM B117 exposes coated test coupons or actual parts to a five percent sodium chloride fog at thirty five degrees Celsius. High phosphorus electroless nickel plating should exceed one thousand hours without red rust on steel substrates. Fourth, porosity testing using a ferroxyl test or electrographic method identifies pinholes that would allow corrosion initiation. Fifth, for critical subsea components, hydrogen embrittlement testing per ASTM F519 ensures that the plating process has not introduced delayed cracking risk.

Q4: Can anodizing be repaired if damaged in the field?

Anodizing is an integral conversion coating, not a separate layer. Localized damage to anodized aluminum cannot be spot repaired to match the original coating performance. Small scratches may be touched up with chemical conversion coating such as Alodine to provide temporary corrosion protection, but the mechanical hardness and wear resistance of the anodized layer are lost in the damaged area. For critical components, the only reliable repair is to strip the entire anodized layer using chemical stripping, reprep the surface, and reanodize the whole part. This is typically performed at a qualified finishing facility, not in the field. Designers should consider this limitation when specifying anodized components that may experience mechanical abuse.

Q5: What is the maximum service temperature for electroless nickel plating?

Standard electroless nickel plating with phosphorus content between six and thirteen percent can be used continuously at temperatures up to eighty five degrees Celsius without significant property degradation. At higher temperatures, the amorphous nickel phosphorus deposit begins to crystallize. This crystallization changes the deposit from nonmagnetic to magnetic and reduces corrosion resistance. Short term exposure to one hundred fifty degrees Celsius is acceptable for many applications, but prolonged exposure above one hundred degrees Celsius is not recommended. For high temperature applications above two hundred degrees Celsius, alternative finishes such as nickel boron plating or thermal spray coatings should be evaluated. Heat treating electroless nickel to increase hardness also causes crystallization, so the same temperature limitations apply.

Conclusion

Selecting the right surface treatment for extreme environments requires understanding the interaction between the process, the substrate material, the operating conditions, and the required service life. Anodizing provides thin, hard, integral oxide layers on aluminum that maintain precision tolerances and do not flake or peel. Chemical etching produces burr free, stress free microfeatures in stainless steel and titanium for fuel cells and cooling plates. Electroless nickel plating offers uniform coverage over complex geometries with controlled thickness for corrosion and wear resistance. Precious metal plating enables low contact resistance on titanium for fuel cell applications.

Leading manufacturers do not simply machine metal and send it out for finishing. They provide complete material architecture, integrating five axis CNC machining, chemical etching, vacuum diffusion bonding, and certified precision plating under AS9100D and ISO 9001 quality systems. Their engineers understand that surface finish is not an afterthought but a fundamental part of component design. They work with customers from the initial design phase to recommend the optimal surface treatment based on the specific environmental and mechanical demands of the application.

Navigating complex finishing specifications for a subsea valve, a semiconductor manifold, or a hydrogen fuel cell bipolar plate requires expertise that most machine shops lack. Do not leave critical components to generalists who treat surface treatment as a cosmetic afterthought. Share your STEP files and engineering prints with qualified finishing specialists today for a comprehensive design for manufacturing analysis and technical finish consultation.
