Achieving Sub-Nanometer Precision and Absolute Rigidity in Extreme Scanning Environments

Brand Focus: YICHOU Precision Machining (www.nbyichou.com)

1. Introduction: The Optical Evolution in Autonomous Sensing

The world of optical engineering is undergoing a fundamental transformation. For decades, glass and aluminum dominated the landscape of mirror design—familiar materials with well-understood behaviors and predictable manufacturing processes. But the demands of next-generation optical systems have outstripped what these traditional materials can offer.

Consider the modern LiDAR scanner in an autonomous vehicle. As the vehicle navigates at highway speeds, the scanning mirror must rotate at thousands of revolutions per minute, painting the environment with laser pulses to build a real-time 3D map. Any deformation in the mirror surface—measured in nanometers—translates directly into angular errors in the laser beam, which become meter-scale position errors at 200 meters distance. The margin for error is effectively zero.

Consider the space-based telescope, hurtling through orbit while transitioning from the blazing heat of direct sunlight to the cryogenic cold of Earth's shadow every 90 minutes. The mirror must maintain its figure to fractions of a wavelength of light across temperature swings that would cause ordinary materials to expand and contract by millimeters.

These applications demand a material that seems almost contradictory: one that is simultaneously ultrastiff and lightweight, thermally stable yet highly conductive, polishable to atomic smoothness yet hard enough to resist damage. This material exists, and it is revolutionizing optical system design.

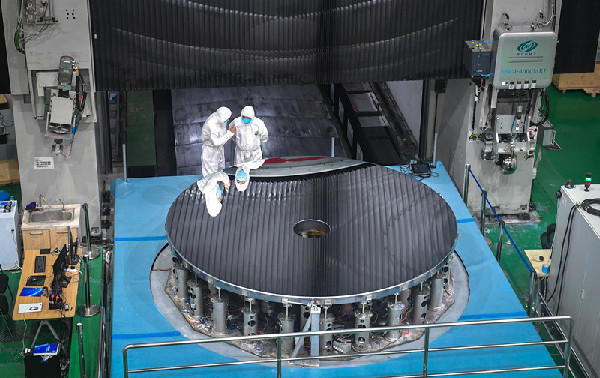

Silicon Carbide (SiC) —the same material prized in semiconductor applications for its thermal conductivity and in armor applications for its hardness—has emerged as the definitive choice for high-performance optical mirrors. With a unique combination of specific stiffness, thermal stability, and polishability, SiC enables optical systems that simply cannot be built from conventional materials.

At YICHOU Precision Machining, we have dedicated ourselves to mastering the art and science of SiC optical component fabrication. Our expertise bridges the gap between raw SiC ceramics and diffraction-limited optics, delivering mirrors that meet the most demanding requirements of LiDAR manufacturers, aerospace prime contractors, and advanced laser system integrators. This comprehensive guide explores why SiC has become the material of choice for these applications and how YICHOU's engineering excellence enables optical performance that pushes the boundaries of what's possible.

2. Specific Stiffness: Eliminating Centrifugal Deformation

The Physics of Dynamic Deformation

When a mirror rotates, it experiences centrifugal forces that attempt to deform its surface. The magnitude of these forces increases with the square of the rotational speed—double the RPM, and you quadruple the deforming force. For modern LiDAR systems pushing toward ever-higher scan rates, this creates a fundamental engineering challenge.

The relevant material property is specific stiffness: the ratio of elastic modulus to density (E/ρ). This determines how much a structure will deform under acceleration for a given weight. Higher specific stiffness means less deformation at high speeds.

Consider the numbers that matter for optical engineers:

• Aluminum (6061-T6): Elastic modulus 69 GPa, density 2.70 g/cc, specific stiffness 25.6

• Beryllium (I-220): Elastic modulus 303 GPa, density 1.85 g/cc, specific stiffness 164

• Silicon Carbide (SSiC): Elastic modulus 420 GPa, density 3.15 g/cc, specific stiffness 133

While beryllium has a slightly higher specific stiffness, it comes with significant drawbacks: extreme toxicity requiring special handling, high cost, and limited availability. SiC offers approximately 80% of beryllium's specific stiffness at a fraction of the cost and none of the safety concerns, making it the practical choice for commercial applications.

The LiDAR Application Advantage

In LiDAR scanning systems, the mirror's dynamic flatness directly determines system performance. As the mirror oscillates, any bending of the reflective surface causes the laser beam to deviate from its intended path—a phenomenon known as jitter. This jitter spreads the laser energy across multiple pixels in the detector array, reducing signal strength and creating noise in the point cloud data.

YICHOU's SiC mirrors maintain exceptional dynamic flatness across their entire operational range. The combination of high elastic modulus and optimized geometry ensures that even at rotational speeds exceeding 5000 RPM, surface deformation remains below the threshold that would affect system performance. The result is cleaner point clouds, longer detection ranges, and more reliable object classification for autonomous vehicles.

Comparative Performance Data

Material	Elastic Modulus (GPa)	Density (g/cc)	Specific Stiffness	Dynamic Deformation (relative)
Fused Silica	73	2.20	33	High
Aluminum	69	2.70	25.6	High
Silicon	150	2.33	64	Medium
Beryllium	303	1.85	164	Very Low
YICHOU SiC	420	3.15	133	Extremely Low

The specific stiffness of SiC is 5 times higher than aluminum and nearly double that of silicon, the two most common alternatives for scanning mirrors. This translates directly into the ability to maintain optical performance at higher scan rates, enabling faster frame rates and higher resolution in LiDAR systems.

3. Polishing the Impossible: Achieving < 1 nm RMS Roughness

The Porosity Challenge

Historically, the greatest obstacle to using SiC in optical applications was its surface quality. Silicon carbide ceramics produced by conventional methods contain porosity—microscopic voids left behind during the sintering process. When polishing reaches these pores, they open to the surface, creating defects that scatter light and degrade optical performance.

For laser applications, this scattering is catastrophic. Each photon that scatters from a surface defect represents lost signal strength and increased noise in the detection system. For long-range LiDAR, where every photon counts, surface quality is paramount.

The industry standard for optical polishing, fused silica, can achieve surface roughness below 0.3 nm RMS. Early SiC materials struggled to reach even 5 nm RMS, limiting their use to applications where scattering could be tolerated.

YICHOU's Advanced Polishing Technology

Through advanced material selection and proprietary processing techniques, YICHOU has overcome the porosity challenge. Our optical-grade SiC begins with high-purity powder processed through optimized forming methods that achieve near-theoretical density with zero interconnected porosity. This dense substrate provides a solid foundation for subsequent finishing operations.

The polishing process itself represents a triumph of manufacturing engineering. Silicon carbide's extreme hardness (Mohs 9.5, second only to diamond) makes conventional polishing methods ineffective. YICHOU employs a multi-step process combining:

Precision Grinding: Diamond-impregnated tools remove bulk material with sub-micron control, establishing the basic optical figure while minimizing subsurface damage.

Loose Abrasive Polishing: Progressively finer diamond slurries reduce surface roughness while maintaining figure accuracy.

Final Figuring: Proprietary techniques achieve the final surface quality, with roughness consistently below 1 nm RMS and regularly reaching 0.5 nm RMS for the most demanding applications.

The result is an optical surface that rivals the best fused silica mirrors in smoothness while maintaining all of SiC's mechanical advantages. Wavefront error is controlled to better than λ/20 at 632.8 nm, with λ/50 achievable for specialized applications.

The Impact on System Performance

For a LiDAR system, the difference between 5 nm and 1 nm surface roughness is dramatic. Total integrated scatter (TIS) scales with the square of surface roughness:

TIS ∝ (4πσ/λ)²

Where σ is the RMS roughness and λ is the wavelength. At 1550 nm—a common LiDAR wavelength—reducing roughness from 5 nm to 1 nm reduces scatter by a factor of 25. This means 96% more laser energy reaches the target, directly extending detection range or allowing operation at lower power.

For space-based telescopes, the benefits are equally profound. Lower scatter means higher contrast in imaging applications and better signal-to-noise ratio in spectroscopic measurements. The ability to achieve such smooth surfaces on a material as hard as SiC represents a true breakthrough in optical fabrication.

4. Athermal Performance: Stability from -200°C to +1000°C

The Thermal Stability Benchmark

Perhaps no property of SiC is more remarkable than its combination of low thermal expansion and high thermal conductivity. This pairing creates what optical engineers call "athermal" behavior—the ability to maintain optical performance across wide temperature swings without active compensation.

The relevant material properties are:

Coefficient of Thermal Expansion (CTE) : SiC exhibits CTE of approximately 2.2-2.5 × 10⁻⁶/K at room temperature, about one-third that of aluminum and one-quarter that of copper. This low expansion means that dimensional changes with temperature are minimal.

Thermal Conductivity: SiC conducts heat at 150-200 W/mK—comparable to aluminum and far exceeding glass or fused silica. This high conductivity means that any heat absorbed from the laser beam or from environmental sources is quickly spread throughout the mirror, minimizing temperature gradients that would otherwise distort the surface.

The combination is uniquely powerful: low expansion minimizes the magnitude of thermal deformation, while high conductivity ensures that any remaining thermal gradients are rapidly eliminated.

Space Applications: The Ultimate Test

Space-based optical systems face the most demanding thermal environments imaginable. A telescope in low Earth orbit may cycle from +50°C in direct sunlight to -150°C in Earth's shadow every 90 minutes. For a conventional aluminum or glass mirror, these temperature swings would cause the optical surface to expand and contract by many wavelengths of light, destroying focus and image quality.

SiC-based systems, by contrast, maintain their figure across these extremes. Research on all-SiC telescopes for LOROP (Long-Range Oblique Photography) sensors has demonstrated that thermal effects on optical performance are negligible, with no observable degradation due to temperature gradients during operation -6. The athermal characteristics of SiC enable telescope designs that maintain diffraction-limited performance without complex active thermal control systems.

For cryogenic applications, such as space-based infrared astronomy, SiC's advantages are even more pronounced. The material maintains its mechanical properties down to liquid helium temperatures, and its thermal conductivity actually increases as temperature decreases—the opposite behavior of most materials. This ensures that mirrors cool uniformly and maintain their figure as they approach operating temperature.

LiDAR Reliability Across Climates

For automotive LiDAR, the thermal environment is less extreme than space but still demanding. A LiDAR sensor mounted on a vehicle must operate from the depths of a northern winter (-40°C) to the heat of a desert summer (+85°C), often with rapid transitions as the vehicle moves between environments.

At -40°C, an aluminum mirror would contract by approximately 400 parts per million relative to its room temperature dimensions. For a 50 mm mirror, this represents a change of 20 μm—enough to shift the focal point of a typical LiDAR system by many times its depth of focus. The result is blurred images and reduced detection range until the system can adjust focus.

A SiC mirror of the same dimensions would contract by only 125 ppm—a change of just 6 μm. More importantly, because the entire optical path can be constructed from SiC or materials with matching CTE, the system can be designed to maintain focus without adjustment across the entire operating temperature range.

The thermal properties of SiC allow for telescope systems that dramatically outperform aluminum-glass alternatives. In thermal soak conditions, SiC focus shift is nominally zero. Comparative studies show that SiC demonstrates up to 37x better performance across temperature ranges for ground resolved distances compared to aluminum-glass telescopes -4.

5. Lightweighting Design: Maximizing System Response

The Inertia Challenge

In scanning applications, the mirror's mass moment of inertia determines how quickly the drive motor can accelerate and decelerate the system. Lower inertia means faster settling times, higher scan rates, and lower power consumption. For LiDAR systems seeking to increase frame rates for better temporal resolution, minimizing mirror inertia is a primary design goal.

The challenge is that mirrors must maintain sufficient stiffness to resist dynamic deformation. A simple thin mirror would have low inertia but would flex unacceptably under acceleration. The solution lies in structural optimization—removing material where it's not needed while preserving stiffness where it matters.

YICHOU's Lightweighting Expertise

YICHOU has developed advanced machining capabilities that allow us to create complex lightweighting structures on the backs of SiC mirrors. These structures—typically honeycomb patterns or optimized rib networks—remove up to 80% of the mirror's mass while maintaining the stiffness of the optical surface.

Our approach is inspired by nature's most efficient structures. The rib patterns are designed to follow the principal stress trajectories under dynamic loading, ensuring that material is placed exactly where it provides the greatest stiffening benefit. This biomimetic approach maximizes performance for a given mass budget.

The machining of these structures on SiC requires extraordinary precision. Pocket depths must be controlled to within microns to maintain balance, and wall thicknesses can be as thin as 0.5 mm while still providing adequate support. YICHOU's ultrasonic grinding and diamond machining technologies make these geometries possible.

Performance Benefits

The benefits of lightweighting cascade through the entire system design:

Faster Scanning: Lower inertia allows higher scan rates for the same motor torque, increasing LiDAR frame rates and improving temporal resolution for moving objects.

Lower Power Consumption: Reduced inertia means less energy required per scan cycle, reducing heat generation and extending battery life in portable systems.

Higher Resonant Frequencies: Lightweighting, when properly designed, actually increases the mirror's resonant frequencies by reducing mass while preserving stiffness. Higher resonant frequencies allow the system to operate at higher scan rates without exciting mechanical resonances.

Improved Dynamic Flatness: By optimizing the distribution of mass, YICHOU's lightweighting designs ensure that the optical surface remains flat even under high dynamic loads.

For space applications, where every gram of mass carries a launch cost premium, lightweighting is even more critical. A SiC mirror can be designed to match the stiffness of a beryllium mirror of equivalent mass while avoiding the toxicity and cost issues of beryllium. Alternatively, for the same mass budget, a SiC mirror can be made significantly stiffer, improving the system's dynamic performance.

Mirror Type	Mass (relative)	Stiffness	Resonant Frequency	Dynamic Flatness
Solid Aluminum	100	Low	Low	Poor
Solid SiC	115	High	Medium	Good
Lightweighted SiC	35	Very High	Very High	Excellent
Beryllium	60	High	High	Good

The table above illustrates the advantage: a lightweighted SiC mirror can achieve lower mass than beryllium while providing superior stiffness and resonant frequency, all without the handling and cost issues associated with beryllium.

6. Coating Technology: Maximizing Reflectance and Durability

The Importance of High Reflectivity

The performance of any optical mirror depends ultimately on its coating. Even the most perfectly figured SiC substrate is useless without a coating that provides high reflectivity at the operating wavelength and withstands the environmental conditions of the application.

For laser applications, coating reflectivity has two critical effects. First, higher reflectivity means more laser power reaches the target, improving system efficiency and range. Second, higher reflectivity means less power is absorbed by the mirror itself. Absorbed power heats the mirror, potentially causing thermal distortion and focus shift.

The target for modern laser systems is reflectivity exceeding 99.8% . At this level, absorption is below 0.2%, minimizing thermal loading even at multi-kilowatt power levels.

Coating Options from YICHOU

YICHOU offers a comprehensive range of coating options optimized for different wavelength ranges and applications:

Protected Metal Coatings: For applications requiring maximum broadband reflectivity, protected silver and gold coatings provide >98% reflectance from visible through infrared wavelengths. These coatings are suitable for many LiDAR and sensing applications where cost is a primary consideration.

Dielectric Enhanced Coatings: For higher reflectivity and better environmental durability, dielectric-enhanced metal coatings combine the broadband performance of metals with the durability and reflectivity of dielectric stacks. Reflectivity exceeding 99.5% is routinely achieved.

All-Dielectric High Reflectors: For the most demanding applications, all-dielectric coatings provide reflectivity exceeding 99.9% over limited wavelength ranges. These coatings are standard for high-power laser applications where minimal absorption is critical.

Custom Coatings: For specialized requirements, YICHOU works with leading coating vendors to develop custom coating solutions tailored to specific wavelength ranges, incident angles, and environmental conditions.

Coating Durability Considerations

For LiDAR applications, coating durability is as important as initial reflectivity. The mirror may be exposed to automotive environmental extremes: temperature cycling, humidity, vibration, and even chemical contaminants from road salts and exhaust.

YICHOU-specified coatings undergo rigorous environmental testing to verify their durability. Standard tests include:

• Adhesion testing (tape pull)

• Humidity exposure (49°C, 95% RH for 24 hours)

• Temperature cycling (-40°C to +85°C)

• Abrasion resistance (cheesecloth rub)

Coatings that pass these tests provide reliable performance throughout the system's operational life.

7. Quality Assurance: Verifying Optical Performance

Metrology Capabilities

The performance of a precision optical mirror must be verified before it can be trusted in a critical application. YICHOU maintains comprehensive metrology capabilities to characterize every mirror we produce:

Interferometry: Phase-shifting interferometers measure surface figure with sub-nanometer precision, providing quantitative maps of surface deviation from the ideal shape. Wavefront error is reported in standard metrics: peak-to-valley (PV) and root-mean-square (RMS) at the test wavelength.

Profilometry: For roughness measurement, optical profilers provide high-resolution surface maps with nanometer vertical sensitivity. These measurements verify that surface roughness meets the stringent requirements for low-scatter applications.

Coordinate Metrology: For lightweighted mirrors, coordinate measuring machines verify that all structural features are within tolerance and that the overall dimensions meet specifications.

Balancing: For rotating mirrors, dynamic balancing ensures that the mirror assembly can operate at design speeds without inducing vibration.

Certification and Documentation

Every YICHOU optical mirror ships with comprehensive documentation including:

• Material certification (purity, density, mechanical properties)

• Surface figure measurement (interferogram and numerical data)

• Surface roughness measurement

• Dimensional inspection report

• Coating certification (reflectance spectrum, environmental test results)

This documentation provides our customers with complete confidence that each mirror meets its specifications before integration into their systems.

8. FAQ: Technical Queries for Optical Engineers

Q: Is SiC compatible with standard optical coatings?

A: Yes, SiC is compatible with all standard optical coating materials and processes. The thermal expansion of SiC is well-matched to common coating materials, minimizing stress during thermal cycling. YICHOU works with leading coating vendors to ensure that our mirrors accept coatings without adhesion or durability issues. Coating options include protected metals (gold, silver, aluminum), dielectric-enhanced metals, and all-dielectric high reflectors for specific wavelength ranges.

Q: How does YICHOU verify the wavefront error of custom SiC mirrors?

A: YICHOU employs phase-shifting interferometry to measure surface figure with sub-nanometer precision. For flat mirrors, we measure directly against reference flats. For curved surfaces, we use computer-generated holograms (CGH) or null optics to create reference wavefronts matched to the design. Measurements are performed in temperature-controlled environments to eliminate thermal effects, and results are reported as both peak-to-valley and RMS wavefront error at the test wavelength (typically 632.8 nm).

Q: What are the size limitations for precision SiC mirrors?

A: YICHOU's manufacturing capabilities accommodate mirrors from 10 mm to 600 mm in diameter. The practical size limit depends on the specific geometry and lightweighting requirements. For very large mirrors (>400 mm), we work with our supply chain partners to ensure that raw material availability and processing capabilities match the requirements. For small mirrors (<25 mm), our precision machining capabilities enable features and tolerances that would be impossible with conventional methods.

Q: What is the maximum operating temperature for SiC mirrors?

A: SiC maintains its mechanical properties to very high temperatures. In inert atmospheres or vacuum, SiC mirrors can operate continuously at temperatures exceeding 1000°C. In air, the maximum temperature is lower—typically 1400°C—due to the formation of a passive oxide layer. For most optical applications, the practical limit is set by the coating rather than the substrate, with most coatings rated for continuous operation to 200-300°C.

Q: Can SiC mirrors be used in cryogenic applications?

A: Yes, SiC is one of the few materials that performs well at cryogenic temperatures. Its thermal conductivity actually increases as temperature decreases, ensuring uniform cooling. The CTE becomes very small at cryogenic temperatures, minimizing thermal distortion during cooldown. SiC mirrors are standard in cryogenic space telescopes and infrared instruments.

Q: How does SiC compare to beryllium for space applications?

A: SiC offers several advantages over beryllium. First, SiC is non-toxic, eliminating the special handling requirements and safety concerns associated with beryllium. Second, SiC can be polished to smoother surfaces than beryllium, reducing scatter. Third, SiC's thermal conductivity is higher, minimizing thermal gradients. Fourth, SiC is less expensive and has shorter lead times. Beryllium's primary advantage is lower density, but lightweighted SiC can achieve comparable areal density while providing superior optical performance.

Q: What surface roughness can YICHOU achieve on SiC mirrors?

A: For standard optical mirrors, YICHOU achieves surface roughness below 2 nm RMS. For demanding applications requiring minimum scatter, we can achieve roughness below 1 nm RMS, with specialized processes reaching 0.5 nm RMS. The achievable roughness depends on the specific SiC grade and the mirror geometry, but our processes are optimized to deliver the best possible surface quality for each application.

Q: How does YICHOU ensure batch-to-batch consistency?

A: YICHOU maintains strict process controls throughout manufacturing. Raw materials are certified to specifications before use. Machining and polishing processes are qualified and monitored using statistical process control. Every mirror is individually measured and certified before shipment. For production quantities, we provide lot traceability and can supply statistical summaries of key performance parameters.

9. Conclusion: Engineering the Future of Vision

The demands placed on modern optical systems continue to increase. LiDAR scanners must see farther and clearer to enable safe autonomous driving. Space telescopes must be larger and lighter to see deeper into the universe. Laser systems must be more powerful and precise to enable new manufacturing processes. At the heart of all these systems is the mirror—the component that gathers, directs, and focuses light.

Silicon carbide has emerged as the material that makes these advances possible. Its unique combination of properties—extreme stiffness, low thermal expansion, high thermal conductivity, and polishability to atomic smoothness—enables optical designs that simply cannot be realized with conventional materials.

At YICHOU Precision Machining, we have dedicated ourselves to mastering the full spectrum of SiC optical fabrication. From material selection through precision machining, from polishing through coating, we control every aspect of the manufacturing process to deliver mirrors that meet the most demanding requirements.

Our team brings together expertise in:

• Materials Science: Understanding how processing affects material properties and optical performance

• Precision Engineering: Machining SiC to tolerances measured in microns and sub-microns

• Optical Fabrication: Polishing the hardest materials to the smoothest surfaces

• Metrology: Verifying performance with state-of-the-art measurement technology

• Coating Technology: Applying durable, high-reflectivity coatings optimized for each application

This comprehensive capability allows us to serve as a true partner to optical system developers, from early prototyping through volume production.

As we look toward the future, the role of SiC in optical systems will only grow. Emerging applications in augmented reality, quantum sensing, and directed energy will demand even greater performance from optical components. YICHOU is committed to advancing the state of the art in SiC optics, investing in new technologies and processes to meet these future demands.

Whether you are developing the next generation of automotive LiDAR, designing a space-based telescope for Earth observation, or pushing the boundaries of high-power laser processing, YICHOU has the expertise and capabilities to support your success. Our mirrors combine the ultimate material properties with precision fabrication to deliver optical performance that exceeds expectations.
